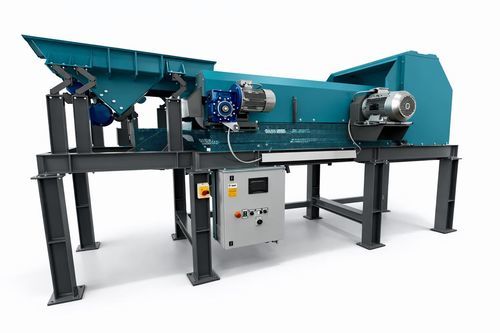

Non-ferrous metal separator 500

eddy currentfor the recycling industrywaste recycling

Overview
Eddy Current Separators enable the highly accurate automatic separation of non-ferrous metals, improving sorting efficiency and maximizing resource recovery.

Operation
Electric motor equipped with a tension controller and a toothed belt drive. Vibrating feeder ensuring uniform material loading across the entire width of the conveyor belt.

Structure
Protective guard enclosing the entire machine perimeter to ensure maximum operational safety. Discharge hood equipped with a transparent polycarbonate inspection hatch for quick and safe inspection.

Adjustments
Three-way discharge diverter (A, B, C), adjustable to suit different separation and material distribution requirements.

Variants
Belt available in PVC 3/T or EP400 3-ply rubber.

Applications

• Waste treatment plants, dry waste, multi-material waste and RDF applications
• Aluminium Packaging Recycling Plants
• Hollow and Flat Glass Recycling Plants
• PVC, PE and PET Recycling Plants
• Wood Recycling Plants
• Shredding plants for aluminium profiles, end-of-life vehicles (Proler and Fluff) and WEEE household appliances
• Finishing Plants for Aluminium, Bronze, Brass and Copper Castings
• Non-Ferrous Metal Foundry Plants
• Treatment Plants for Combustion Residues, Ashes and Incinerator Waste

Technical Data Sheet
Model | L | A | B | C | D | Rotor Motor Power | Conveyor Motor Power | Weight
500 | 500 | 1.300 | 3.800 | 1.100 | 1.600 | 3 | 0,75 | 1.500
800 | 800 | 1.300 | 3.800 | 1.350 | 1.850 | 3 | 0,75 | 1.650
1.000 | 1.000 | 1.300 | 3.800 | 1.600 | 2.100 | 4 | 0,75 | 1.900
1.200 | 1.200 | 1.300 | 3.800 | 1.855 | 2.400 | 5,5 | 1,5 | 2.050
1.500 | 1.500 | 1.300 | 3.800 | 2.055 | 2.600 | 5,5 | 1,5 | 2.200
2.000 | 2.000 | 1.650 | 4.760 | 2.560 | 3.080 | 5,5 | 1,5 | 2.600

Characteristics / Technical specifications

• Separation principle: eddy current separation for non-ferrous metals
• Electric motor with tension controller and toothed belt drive
• Vibrating feeder for uniform loading across conveyor width
• Protective guard around full machine perimeter for safety
• Discharge hood with transparent polycarbonate inspection hatch
• Three-way adjustable discharge diverter (A, B, C)
• Belt material options: PVC 3/T or EP400 3-ply rubber
• Available models (examples with key data): 500, 800, 1000, 1200, 1500, 2000 (see Technical Data Sheet above for dimensions, motor powers and weights)
