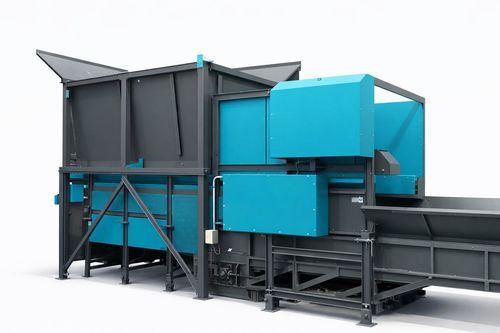

Dosing station

Overview
The system ensures a continuous and uniform material feed, providing precise dosing and optimal material storage. The material is uniformly mixed and dosed through a system designed to ensure a continuous and controlled material flow. The continuous and consistent feed to the plant optimizes subsequent stages of the process, improves operational efficiency and ensures reliable performance even when processing materials with varying characteristics or feed rates.

Structure
The system consists of a dosing drum combined with a chain conveyor, ensuring precise material dosing and optimal material storage.

Mixing
Excellent material mixing and homogenization capability.

Maintenance
Large maintenance access opening, allowing residual material to be removed even when the machine is fully loaded. The drum can be removed from the side to facilitate maintenance and replacement operations.

Adjustment
Drum with an adjustable working height on three different levels, allowing it to be adapted to specific operational requirements.

Technical specifications

• Drum Width: 1,200 - 2,400 mm
• Drum Diameter: 1,400 mm
• Teeth: Length 140 - 190 mm
• Capacity: 60 m³/h per linear metre
• Length: Up to 40 m
• Bunker Side Height: 2,300 mm
