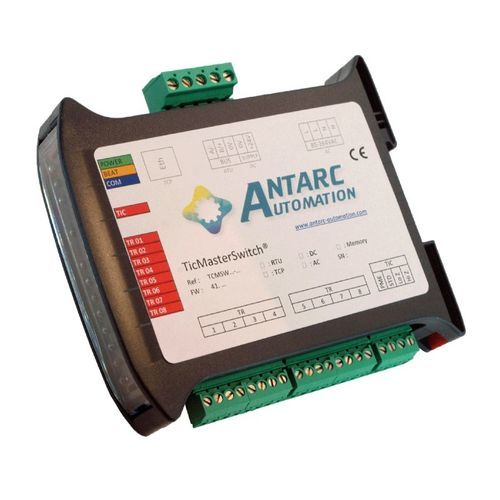

Communication gateway TicMasterSwitch®

telemetryTCPEthernet

Description
The TicMasterSwitch® combines a TicMaster® and a TicSwitch® in a single enclosure. All features of both devices are available.

TicMaster® features

• Decodes customer Teleinformation (TIC) frames as provided by EDF/ERDF electronic meters.
• One TIC input with integrated opto-isolated coupler to avoid common-mode issues and compatible with long TIC lines.
• Configurable input impedance (high or low) for coexistence with third-party systems (DEIE, concentrators, ...).
• Compatible with Blue (CBE), Yellow (CJE), Green (ICE), PME-PMI and SAPHIR meters.
• Supports all TIC speeds (1200 or 9600 baud) and meters with injection (4Q – PME-PMI / Emeraude / Saphir).
• Firmware compliant with ERDF normative document ERDF-NOI-CPT_0x. More than 550 TIC labels decoded; up to 1100 individual quantities accessible.
• Error handling routines for typical TIC defects (missing data, mixed frames, missing CRC, ...).
• Summation of index totals (all tariff slots combined) and per-energy totals with access to load curves.
• Version M: persistent data storage even without power (non-volatile memory).

TicSwitch® features

• Extracts the current tariff slot from TIC signals and displays it via one of 8 dry-contact NO outputs.
• Supports up to 8 tariff slots depending on meter type and contract.
• Tariff slot support by meter type:
  • Blue (CBE): up to 6 slots (HCJB/HCJW/HCJR/HPJB/HPJW/HPJR)
  • Linky (LNK): 1 to 8 slots
  • Yellow (CJE): 6 slots (HPE/HCE/HPH/HCH/P/PM)
  • Green (ICE): up to 8 slots (PM/HH/HPE/HCE ...)
  • ICE-4Q injection: up to 8 slots (P/HPH/HCH/HPE/HCE/...)
  • PME-PMI: up to 8 slots (PTCOUR1 or PTCOUR2)
  • SAPHIR: up to 8 slots (PTCOURD or PTCOURF)
• With CBE, CJE and ICE-2Q: decodes the current withdrawal period.
• With ICE-4Q, PME-PMI and SAPHIR: configurable to decode withdrawal or injection period via a dedicated Modbus register.

Miscellaneous

• Unused TOR outputs can be reassigned for Modbus control.
• Supervision and alarm functions available for high-reliability applications.
• LED indicators for quick commissioning and diagnostics; monitoring of each TIC channel accessible via Modbus.

Commissioning

• Delivered ready to use. Apart from setting the Modbus address, no configuration is required for basic operation.
• TIC channel configuration and Modbus table generation are automatic. No dedicated software or hardware is needed.

Applications

• Building management systems (BMS/BAS)
• Energy management and optimization systems
• Energy monitoring
• Remote metering systems

Target sites

• Small buildings
• Private installations (consumption + PV production)
• Logistics warehouses
• Small main switchboards (TGBT)
• Small residential blocks

Technical specifications

• Reference: TCMSWR-D
• Condition: New product
• Number of TIC inputs: 1
• Supported meters (non-exhaustive):
  • Blue electronic meters (CBE / CBEMM / CBETM – single/three-phase): e.g. Landis & Gyr L16C2, L16C5, ZMD126/L18C4/L18C5, ZMB126 (depending on FW); Sagem S10C2, U3C2, C1000, C2000, C2000-4, ...
  • Linky mono and tri
  • Yellow meters (CJE): e.g. Sagem C3000, Actaris A70TJ, A12ETJ, ...
  • Green meters (Emeraude) (ICE-2Q and ICE-4Q): e.g. Chauvin-Arnoux TRIMARAN 2, Actaris QE16, QE16M, ...
  • PME-PMI meters: e.g. Landis & Gyr ZMG416, L19C1, Itron ACE6000, Sagem C3000, ...
  • SAPHIR meters: e.g. SagemCom C3500, ALTYS, ...
  • Coexistence possible with DEIE, MAEC concentrator, ...
  • The SL7000 meter does not provide a TIC output
• Bus: RS485 on twisted pair (RTU version); optional TCP (Ethernet) depending on version
• Bus speeds: 1200, 2400, 9600, 19200, 56700 baud
• Parity: none / even / odd
• Protocol: Modbus / Jbus
• Supported Modbus functions: 3, 6 and 16
• Grouping length: 16 registers
• Power supply: 10-30 VDC or 85-264 VAC (depending on version). Options available: 24 VDC or 240 VAC
• Consumption: 0.36 W - 15 mA (typ.) @ 24 V DC
• Connections: power and bus via removable Phoenix MSTB pitch 5.08; TIC input via removable Phoenix MCV pitch 3.81
• Dimensions: 22.5 (W) x 101 (H) x 119 (D) mm
• Weight: 125 g
• Mounting: Symmetric DIN-rail
• Operating position: any
• Environment: Operating temperature -20°C to 80°C; relative humidity 10–90% RH (non-condensing)
