Rotary vane vacuum pump AFM series
lubricated230VAC460 VAC

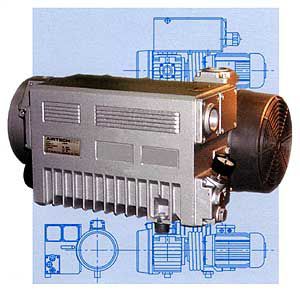

Rotary vane vacuum pump - AFM series - ANVER Vacuum System Specialists - lubricated / 230VAC / 460 VAC
Rotary vane vacuum pump - AFM series - ANVER Vacuum System Specialists - lubricated / 230VAC / 460 VAC
Rotary vane vacuum pump - AFM series - ANVER Vacuum System Specialists - lubricated / 230VAC / 460 VAC - image - 2
Rotary vane vacuum pump - AFM series - ANVER Vacuum System Specialists - lubricated / 230VAC / 460 VAC - image - 3
Rotary vane vacuum pump - AFM series - ANVER Vacuum System Specialists - lubricated / 230VAC / 460 VAC - image - 4
Add to favorites
Compare this product
Go to the ANVER Vacuum System Specialists website for more information

Characteristics

Technology
rotary vane
Lubrication
lubricated
Supply voltage
230VAC, 460 VAC
Number of stages
single-stage
Applications
for heavy-duty applications
Other characteristics
air-cooled, high-performance, direct-drive
Ultimate vacuum

0.5 Torr
(0.01 psi)

Flow rate

1,275 l/min, 1,982 l/min
(336.82 us gal/min, 523.59 us gal/min)

Noise level

70 dB

Weight

74.6 kg, 82.2 kg
(164.46 lb, 181.22 lb)

Description

ANVER’s oil-flooded, multi-vane vacuum pumps are single stage, air-cooled and direct driven. This simple design ensures the reliability and durability that is required in the vacuum industry. Standard Equipment: • Composite vane material for long life • Non metal or asbestos • Oil level site glass • Vibration isolators • Anti-suck back valve • Integral exhaust filters • Wire mesh inlet screen

Catalogs

No catalogs are available for this product.

See all of ANVER Vacuum System Specialists‘s catalogs
Go to the ANVER Vacuum System Specialists website for more information
