Dosing station

Description
The dosing station is designed to dose biocides and chemicals into drinking water such as sodium hypochlorite, chlorine dioxide and other substances suitable for sanitation or maintenance. The dosing amount is adjustable according to application. The base unit features volumetric dosing with an integrated water meter and the ability to program the desired dosing quantity.

Construction and variants
Manufactured by the company, it can be supplied on a steel or PVC mounting panel, wall-mounted or on a self-supporting frame complete with a safety basin for product containers. The panel can be customized graphically. Versions are available with piping and meters in various sizes (from 3/4" to 2") and accessories on request. Piping and injection valve are available in PVDF (specific for chlorine dioxide) or PE versions. The unit is intended for professional use and requires minimum semi-annual maintenance.

Example of use

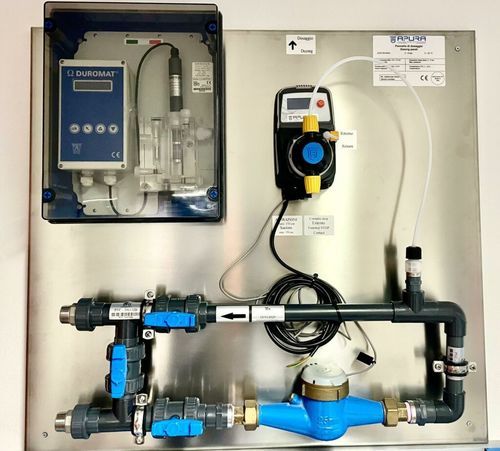

Example of a dosing station fitted with a Duromat Ohm amperometric analyzer

Technical characteristics (page data)
Voltage: 100÷240VAC ± 10 % – 50/60 Hz
Protection rating: IP65
Dimensions: 700x800 mm
Weight: 19.5 kg
Power consumption: 18 Watt
Ambient temperature: 5-40 °C
Dosing rate: maximum 1.8 l/h – 20 bar
Dosing tube: 6 mm
Pressure: 1-6 bar

Features / technical specifications

• Voltage: 100÷240VAC ± 10 % – 50/60 Hz
• Protection rating: IP65
• Dimensions: 700x800 mm
• Weight: 19.5 kg
• Power consumption: 18 Watt
• Operating ambient temperature: 5-40 °C
• Dosing rate: maximum 1.8 l/h – 20 bar
• Dosing tube: 6 mm
• Operating pressure: 1-6 bar
• Available versions: steel or PVC panel; wall-mount or self-supporting frame with safety basin
• Piping options: various sizes from 3/4" to 2"; injection valve in PVDF or PE versions
• Dosing type: volumetric with integrated water meter and programmable quantity
• Use: professional; minimum semi-annual maintenance
