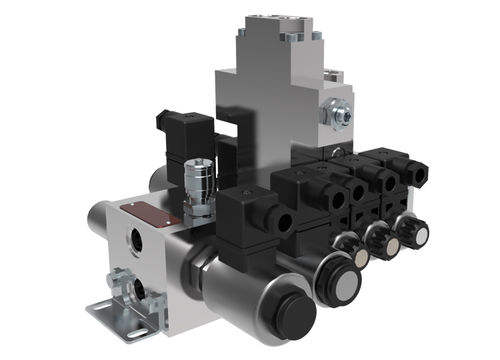

Liquids dispenser RPEK1-03/B

modularcompactmobile

Size 03 • Qmax 20 l/min (5 GPM) per section • Qmax 60 l/min (16 GPM) total inlet pmax 250 bar (3600 PSI) Compact modular valve assembly for the control of fluid flow, direction and pressure Horizontal integration of up to 8 modules with end inlet or 16 modules with center inlet Convenient compact solution for both mobile applications and small hydraulic power packs Solenoid operated directional control valves in sections enable vertical integration High block variability utilizing both vertical and horizontal modular integration Blocks with valve cavities C-08 (3/4-16 UNF) enable the use of wide range of screw-in cartridge valves from the production program Simple creation of a hydraulic circuit using stocked items without having to produce a custom block Optional inlet block with proportional flow control up to Q = 45 l/min and pressure drop stabilization End valve blocks help to save space and costs Connection threads of inlet ports P, T: 3/8“ BSPP or SAE 8 (3/4-16 UNF) Connection threads of output work ports A, B: 1/4“ BSPP or SAE 6 (9/16-18 UNF) Standard components are made from various materials. Refer to individual catalog sections Optional increased surface corrosion protection 520 h in NSS acc. to ISO 9227, e.g. for mobile applications
