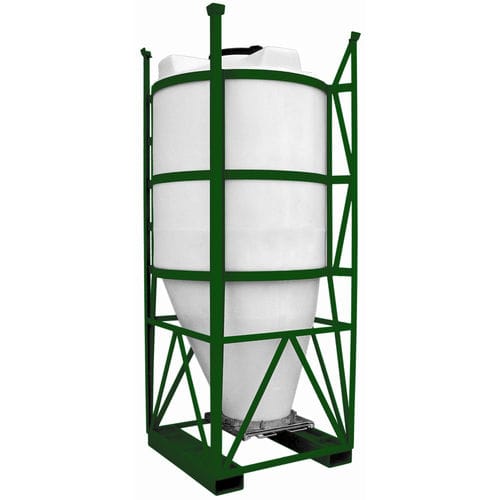

Liquid tank TCS/L series

polyethylenecylindricalcone-bottom

- cylindrical asymmetric container, with screw cap, in steel frame - inner container PE: chemical resistant, UV-stabilized, food-safe - seamlessly produced though the rotary melt process - sintered litre scale - container color: natural-transparent (white) or black - screw cap made out of polypropylene with ventilation - emptying port R2 ", optional R1" and R4 " - steel frame with forklift shoes, optional frame variations - steel frame powder coated in red (RAL 3011), galvanized or stainless steel Typical for the container TCS / L is the extremely distinct cone. The inner wall is very smooth, with a high wall thickness. It is seamlessly manufactured in the rotary melting process and is chemical resistant, UV stabilized and food-safe. The inner container in the steel frame is made out of LLD-PE (low-linear density polyethylene) and is available in natural-transparent (white) and black. The natural -transparent (white) container is ideally suited for reading the filling level from the outside by using the sintered litre scale. Black containers are for the protection light sensitive liquids so that an outdoor installation is basically possible. The temperature resistance of PE containers is in between -20 ° C and + 60 ° C. The emptying port is optionally set from R1 "to R4" for emptying fittings. The steel frame has forklift shoes and is available in powder coated colors, in galvanized or in stainless steel.
