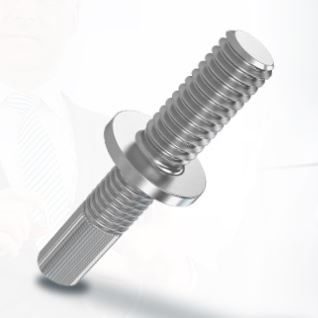

Straight pin Tripress

safetyself-clinching

Reduces asembly time by up to 75%. TriPress® is a triangular quick fastening system that can be clinched into plastic, light metals and steel. You can join two components quickly and economically by pressing in the TriPress® fastener. Technology in application The TriPress® is available in the following designs: triangular shank and axially parallel knurls provide high torsional strength circumferential locking flutes on triangular shaft generate high pull-out resistance combinations of flutes and knurls create positive-fit fastenings and achieve high torsional torques and pull-out forces The fastener can be clinched into pre-prepared holes or injected as inserts into plastic housings. The advantages of the triangular shape: approximately 35 % greater torsional torques compared with round-knurled bolts greater vibration resistance highly reliable when fitting nuts with TriPress® centre collar version (MB) and TriPress® connecting fastener Benefits of the circumferential locking flutes: improves pull-out forces very secure against unscrewing by itself The advantages of TriPress® over screw fastenings: 75 % less fitting time no assembly errors independent of pre-stress forces force-controlled clinching uses more economical operating materials and tools The advantages of TriPress® over injection moulded screws (In plastics): no need to insert metal parts into injection moulds shorter cycle times no lost fastener elements
