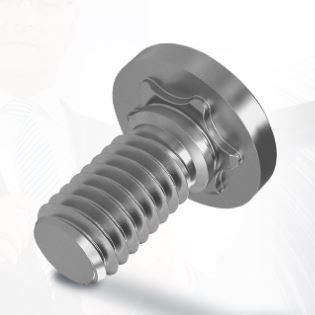

Thin sheet metal screw RIVTEX® / STRUX®

fastening

Especially suitable for use in thin sheet-metals. A non-detachable fastening for sheet metals can be produced at optimum cost by using self-clinching screws under the brand names of RIVTEX® (for sheet thicknesses between 0.75 and 2.00 mm) and STRUX® (for sheet thicknesses between 2.0 and 5.00 mm). The clinching technology is suitable for steel and aluminium sheets, causes very little cost in inspection and control, and allows several clinch screws to be processed in a single stroke. The benefits of RIVTEX® RXS self-clinching screws: especially suitable for use in thin sheet-metals can process several self-clinching screws in a single stroke can be used in steel and aluminium metal thickness: 0.75 -2.0 mm strength class 8.8 and 10.9 The advantages over welding: low inspection and control costs avoids emissions and reduces energy costs no thermal weakening at the fastening position The benefits of STRUX® SX self-clinching screws: especially suitable for heavy loads in thick sheet metals can process several self-clinching screws in a single stroke can be used in steel and aluminium metal thickness: 2.0 -5.0 mm strength class: 8.8 and 10.9 The advantages over welding: low inspection and control costs avoids emissions and reduces energy costs no thermal weakening at the fastening position
