Optical measuring system
3D2Dfor PCB

optical measuring system
optical measuring system
Add to favorites
Compare this product


optical, 3D, 2D
Measured material
for PCB
Other characteristics
automatic, smart

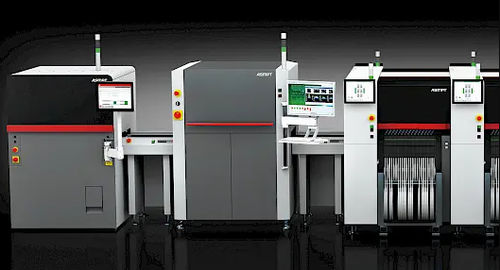

The Process Lens high-end 5D SPI system offers an unprecedented combination of speed and precision, and thanks to the use of powerful state-of-the-art algorithms, it understands exactly what it measures and knows how to interpret the results. • Innovative: DLP chips with 8 or 20 million micromirrors (standard and HD version, respectively) produce absolutely distortion-free Moiré patterns • Fast and reliable: Up to 70 percent shorter inspection times and up to 80 percent fewer false calls compared to traditional SPI systems. • High precision: With a resolution of down to 10 µm, speed and precision are no longer mutually exclusive with the Process Lens. • Measures what matters: The Process Lens measures paste deposits, glue, contamination, dust, and a whole lot more – all while suppressing any measurement noise generated by the PCB. Since the Process Lens delivers constant feedback on a variety of factors and trends beginning with the first board that leaves the printer, you can take countermeasures before the first error even occurs: true and accurate process data ensures efficient and effective process optimization. Smart process optimization that’s easy to retrofit WORKS Process Expert Printing module When you combine the Process Lens with the WORKS Process Expert software, you get the world’s first self-learning inline SPI system, with fully autonomous printing process control and optimization for high-end DEK printing systems.
