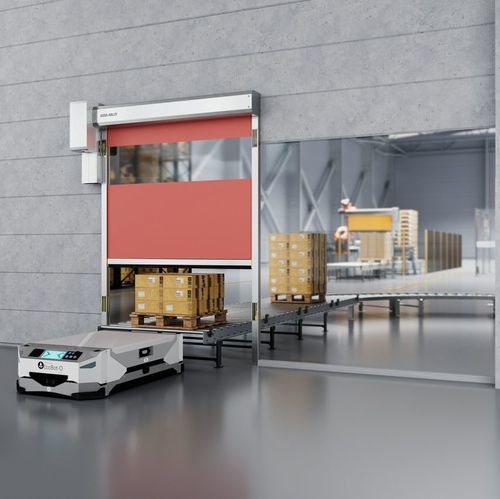

Vertical sliding door RP100 SimplySafe

indoorindustrialfor production lines

Presentation
The ASSA ABLOY RP100 SimplySafe is a high-speed machine protection door designed to protect personnel and processes in automated environments. As a safety barrier, it effectively isolates hazardous zones and prevents access to moving parts, high-risk areas or operating machinery. By blocking unauthorized access during automatic cycles, the RP100 SimplySafe preserves safety of critical areas.

Functionality and usage

• Protects operators and processes in automated installations.
• Separates hazardous zones and prevents access to moving parts or running machinery.
• Allows controlled, safe access for maintenance, inspections and manual interventions.
• Integrates with safety interlocks and control systems to ensure safe restart conditions.

Applications

• Logistics and warehouses, including AGV-equipped facilities.
• Industrial automated production lines and end-of-line packaging.
• Conveyor and material handling systems.
• Automated storage and retrieval systems (AS/RS).
• Lift systems and palletizing stations.

Integration and safety

• Designed for integration with safety locking devices and control/PLC systems.
• Enables safe restart conditions after intervention.
• Protects operators from moving parts and hazardous zones.

Compliance and safety performance

• Compliant with standards referenced in the product documentation: DIN EN ISO 14120 and EN 619.
• Safety performance levels supported for integration: PL e, SIL 3 (for safety elements and end-of-travel switches).
• Configurable for integration with safety PLCs and interlocking systems according to site requirements.

Characteristics / technical specifications

• Product type: machine protection door.
• Model: RP100 SimplySafe.
• Brand: ASSA ABLOY.
• Main function: prevent unauthorized access to critical zones during automatic cycles and permit safe access for maintenance.
• Integration: compatible with safety interlocks and control/PLC systems for safe restart.
• Standards: DIN EN ISO 14120, EN 619 (as specified in product documentation).
• Safety: performance level indicated PL e, comparable to SIL 3 depending on configuration.
• Typical applications: warehouses/logistics (AGV), industrial automation, production lines, conveyors, palletizing.
