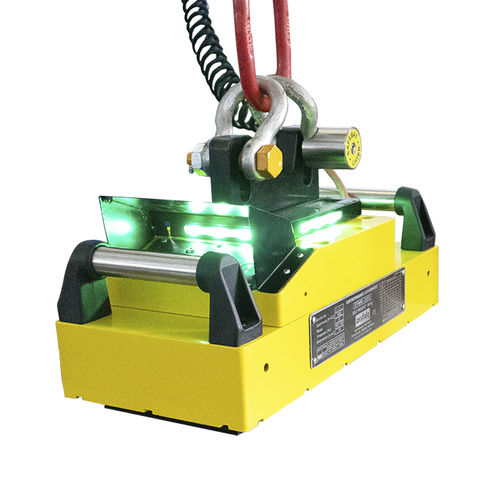

Electrically switched electro-permanent lifting magnet EPMM series
for sheet metalfor billetsfor cranes

electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
electrically switched electro-permanent lifting magnet
Add to favorites
Compare this product


Characteristics

Type of commutation
electrically switched
Applications
for sheet metal, for cranes, for billets, for steel coils
Options
fixed beam, remote-controlled
Lifting force

Max.: 50 kN

Description

The EPM M electropermanent load lifting magnets are used where there is a frequent change of workpieces due to the very short switching times. Only a 230V rated current, depending on magnet with 230V or 400V, must be provided to use these devices and they are then immediately ready for use. Through electrical impulses within seconds, the EPMM from ASSFALG is automatically switched on or manually with the push of a button. No electricity flows during load transport and nevertheless, the workpiece is as securely clamped as with a permanent load lifting magnet. The electro permanent battery lifting magnet EPMM can be used in single mode as well as on magnet traverses and is an interesting alternative for 3-shift operation. With the tip function (inching), even stacked sheets can be separated starting with a thickness of 4 mm. If you would not like the automatic mechanism, you still have the possibility to switch the magnets either directly on the device or with an optionally available remote control. Upon customer request, special pole shoes can also be made for the transportation of round workpieces. Professional advantages: - 4 power levels to pickup even thin sheets - ADPREM function prevents random switching in the air - No electricity flows during lifting (only a electrical impulse for a few seconds is required for magnetizing or demagnetizing) - The magnets can be switched manually through a push button or automatically through a pick-up mechanism. - Optimal for cleaning cutting systems, but also for lifting serial parts - Optional: Positioning drawbar, flexible in Z-axis +/- 60°
