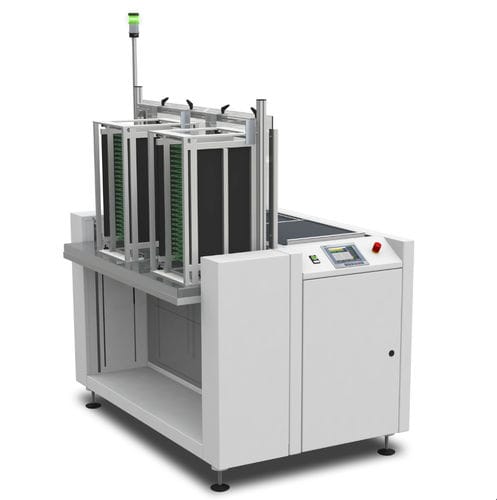

Printed circuit board loading and unloading system VEGO AMS 03D

automatic

Description The loading station AMS 03D is used to automatically unload PCBs from an SMT-production line or from individual process machines e.g. stencil printers, pick and place systems, reflow ovens or test systems. Arriving PCBs are taken over onto the inlet conveyor and then transported sideways on an integrated shuttle and subsequently pushed into the magazine with an inserter mechanism. The system is characterized by its compact and robust construction and has been designed according to the latest machine guidelines and safety standards. The open magazine table provides easy access to the magazines. Magazine exchange during running operation ensures continuous unloading. The integrated shuttle mechanism means that the system can easily switch between different magazine types and takeover positions within seconds. Features _ Automatic switch to the second magazine _ Transfer conveyor with integrated shuttle mechanism _ Vertical magazine clamp _ Simple changeover for different magazines _ Flexible machine set up due to flexible takeover position _ Access to the magazine via the front of the machine _ Touch Display with graphical user interface _ Product parameters can be changed during running operation _ Product memory function
