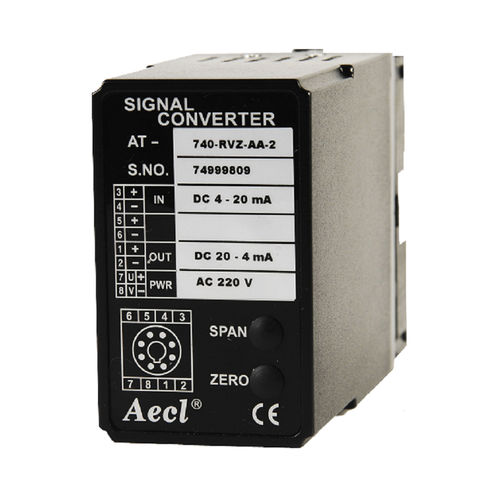

Analog signal converter AT-740 RV RVZ
DIN rail

analog signal converter
analog signal converter
Add to favorites
Compare this product


Signal type
Other characteristics
DIN rail


Dear visitor: Aecl is looking for a partnership for Distributor and system integrator. *If you have any query, please contact us by Direct Industry or by email Aecl AT-740 RV, RVZ - Reverse Converter [Features] ● Versatility of Input and Output Ranges. ● Plug-in Socket Structure and DIN Rail Mounting. ● High Reliability, Lasting Durability, Low Cost and Small Sized. [Specification] ● Accuracy: ± 0.1% FS. (at 23°C) ● Linearity: ± 0.1% FS. ● Response Time: 0.2 sec (0 - 90% ) ● Temp Coefficient: ± 0.015% FS / °C ● Operating Temp: -5 ~ +55°C ● Operating Humidity: 0 - 90% RH ● Insulation Resistance:  a) ≥ 100 MΩ with 500 VDC  b) Non-Iso. Type (Input, Output / Power)  c) Iso. Type (Input / Output / Power) ● Dielectric Strength: AC 1500 V, 1 min.  a) Non-Iso. Type (Input, Output / Power)  b) Iso. Type (Input / Output / Power) ● Case Material: Case is ABS, Base is Bakelite ● Zero and Span Adjustment: ± 20 % FS. ● Power Consumption: 4 VA [Applications] ● Reverse Conversion of DC Signals. ● Fully Isolated between Input and Output.
