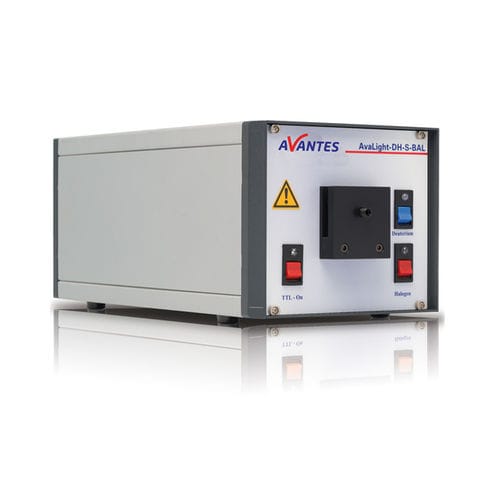

Deuterium lamp light source AvaLight-DH-S-BAL
halogen lampNIRUV

deuterium lamp light source
deuterium lamp light source
Add to favorites
Compare this product

Characteristics

Illumination technology
deuterium lamp, halogen lamp
Spectrum
NIR, UV
Other characteristics
benchtop
Wavelength

Max.: 2,500 nm

Min.: 215 nm

Output power

Max.: 78 W (0.10605 hp)

Min.: 5 W (0.0068 hp)

Description

The AvaLight-DH-S is a powerful deuterium halogen source, but, like any unbalanced deuterium halogen source, it does have a very dominant alpha peak at 656 nm. This is why Avantes developed the DH-S-BAL, in which this peak is drastically reduced by a dichroic filter. This means less power, but an increase in the dynamic range of a factor 20. A comparison spectrum as taken with a standard AvaSpec-2048 is shown on the next page. The light source delivers a continuous spectrum with high efficiency. The highest stability is in the ultraviolet, visible and near-infrared range, from 200 to 2500 nm. An integrated TTL-shutter and filter holder for filters of up to 50 x 50 x 5.0 mm are included. The TTL-shutter can be controlled from any AvaSpec spectrometer, which means the auto-save-dark option in AvaSoft software can be used (please note: IC-DB26-2 cable is needed). Connection to the fiber is done through an SMA-905 connector, which features an adjustable focusing lens assembly. This ensures you have the maximum possible power into your fiber. For all deuterium light sources, solarization resistant fibers (-SR) are recommended (see the fiber-optic section of this catalog). The output of the AvaLight-DH-S-BAL is optimized for fibers or bundles up to 1500 µm. Balanced light source Wide spectrum: 200-2500 nm Integrated TTL shutter High efficiency Increased dynamic range
