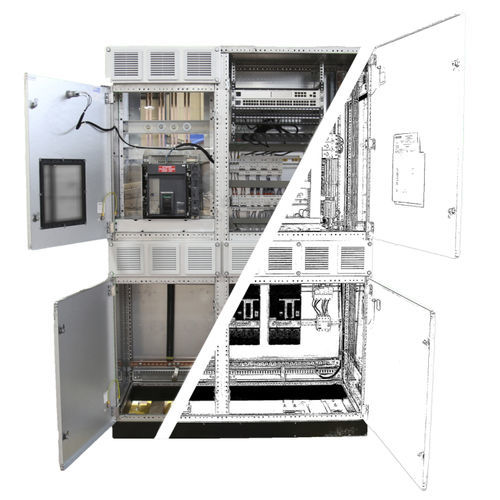

Distribution fuse box TGBT

controlequippedmodular

Our Main low-voltage panel solutions with an IS (Service Index) from 111 to 333 adapt to your criteria concerning the operation, maintenance and scalability of your site. We can integrate a functional unit (FU), motor control (MCC) and motor power (PCC). Our know-how Aventech has developed OMERYS, its Main low-voltage panel solution with an IS (Service Index) from 111 to 333. It is modular and can be adapted for electrical distribution (PCC) and motor control (MCC) applications. It will satisfy the operation, maintenance and scalability criteria of your site. General characteristics Rated service voltage up to 690 Vac Rated insulation voltage 1,000 V Nominal current up to 6,300 A Short circuit holding current: 130 kA/1 s Motor Start: Up to 250 kW Neutral point: TT/TN/IT Form separation: 1a to 4b From IS 111 up to IS 333 Connections via cables or bus ducts Arrival of cables via the top/bottom Functional Unit: Fixed/Detachable/Plug-in Sizing and production of copper busbars according to Icc with heat/Tinned copper test validation for plug-in FUs Panel tested in accordance with panel standard NF EN 61439-1&2 Internal arc resistance (IEC 61641) Functional Unit Mixing of different FUs in the same column Compact system: Half-drawers Remote control or network (Profibus, Modbus, CAN, Ethernet) modular connections Front/rear connectors Robust plug-in system Auxiliary connector up to 72 pins With or without test position FU control by bus and/or cablingstem: Wired or network (Profibus, RS485, Modbus, Ethernet, etc.) Safety 2kV insulation of the copper busbars with epoxy paint Partitioning: cowling of all powered-up parts Simplified access via thermographic inspection
