Embedded computer IWT-600 series
ARM® Cortex™ A7 Quad CoreCAN busRS-232

embedded computer
embedded computer
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
ARM® Cortex™ A7 Quad Core
Ports
CAN bus, RS-232, RS-485
***domain
industrial, for IoT applications
Other characteristics
fanless, Linux

Description

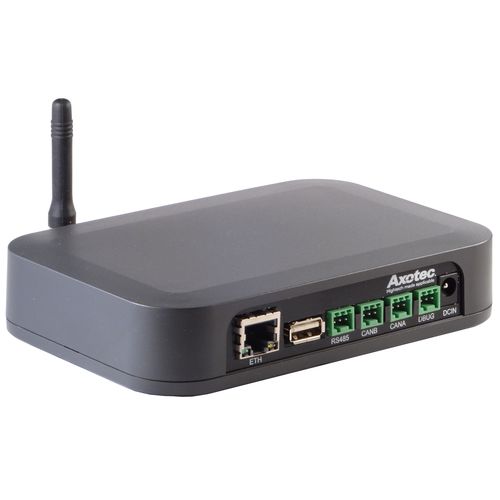

The IWT-600 series is a high-performance, industry-standard Linux-based LTE embedded computer product family for versatile tasks in the field of wireless M2M communication and IoT gateway tasks. The fanless system is equipped with a 1.2GHz QuadCore Cortex processor with 1GB main memory and 4GB eMMC onboard flash memory. IWT-600 is full RPi software compatible. The open Linux system is freely programmable and configurable. The IWT-600 Embedded Computer has an integrated state-of-the-art 4G / LTE interface. An integrated WiFi interface and a Bluetooth interface with external antenna are available for wireless network connection. The IWT-600 system supports a 10/100 Mbit Ethernet interface, up to 2 CAN bus interfaces in the 2.0A and 2.0 standards, three 480Mbps USB host interfaces, one RS422, RS485 or RS232 interfaces as well as 1-wire and I2C ports. In addition, up to 4 isolated digital inputs and 4 digital outputs are available. Power is supplied via a DC wide-range input with 9-40 volts. The modern Kernel 4 based IWT-600 Embedded Computer System is ideal for connecting devices, machines and systems to the Internet as well as for IoT gateway applications. There are several product variants available, customized versions are possible.
