Rotary screw capping machine digitalservo-controlledrotational
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Operating mode
- automatic, servo-controlled, rotational, digital
- Product applications
- for caps
- Application field
- for the wine industry
- Other characteristics
- in-line, conveying
Description
Overview

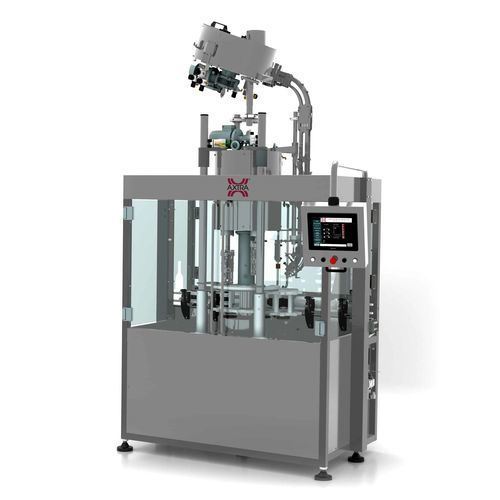

Stelvin Caps Screw Capping Machine designed for Stelvin and Stelvin Lux caps used on wine bottling lines. Built to deliver controlled torque, accurate positioning and stable handling, preserving closure quality and ensuring precise bottle presentation. Suitable for automated wine bottling lines requiring repeatable cap application.
Key features
Machine components and handling
Application
Intended for wine producers and automated bottling lines that require precise application of Stelvin and Stelvin Lux closures and refined bottle presentation.
Integration and flexibility
The system is configurable for bottle/container format, cap type and dimensions, target output speed and existing line layout. It can be combined with upstream and downstream modules (filling, capsuling, labelling, conveyors) to create a complete bottling line.
Technical specifications
Stelvin Caps Screw Capping Machine designed for Stelvin and Stelvin Lux caps used on wine bottling lines. Built to deliver controlled torque, accurate positioning and stable handling, preserving closure quality and ensuring precise bottle presentation. Suitable for automated wine bottling lines requiring repeatable cap application.
Key features
- Controlled torque application for consistent sealing and closure quality
- Accurate and repeatable cap positioning and application
- Stable bottle handling through the capping process (rotary star-wheel or turret)
- Adaptable configuration to match bottle formats, cap specifications, production speed and line layout
- Designed for integration with filling, capsuling, labelling and packaging equipment
Machine components and handling
- Inclined cap elevator and cap sorting/feeding unit to supply Stelvin and Stelvin Lux caps
- Guarded capping chamber for operator safety and clean operation
- Touchscreen HMI to manage capping parameters and operation
- Capping heads delivering controlled torque for repeatable sealing
- Rotary star-wheel transfer / capping turret to guide bottles through the capping station
Application
Intended for wine producers and automated bottling lines that require precise application of Stelvin and Stelvin Lux closures and refined bottle presentation.
Integration and flexibility
The system is configurable for bottle/container format, cap type and dimensions, target output speed and existing line layout. It can be combined with upstream and downstream modules (filling, capsuling, labelling, conveyors) to create a complete bottling line.
Technical specifications
- Supported cap types: Stelvin, Stelvin Lux (aluminium screw caps)
- Cap feeding: inclined elevator and cap sorting unit
- Capping system: rotary turret with dedicated capping heads
- Control: touchscreen HMI for parameter adjustment
- Safety: guarded capping chamber
- Handling: rotary star-wheel transfer for stable bottle positioning
- Adaptability: configurable for bottle formats, cap specifications, production speed and line layout
- Primary application: wine bottling lines
