Belt conveyor

curvedtransporthandling

Product overview

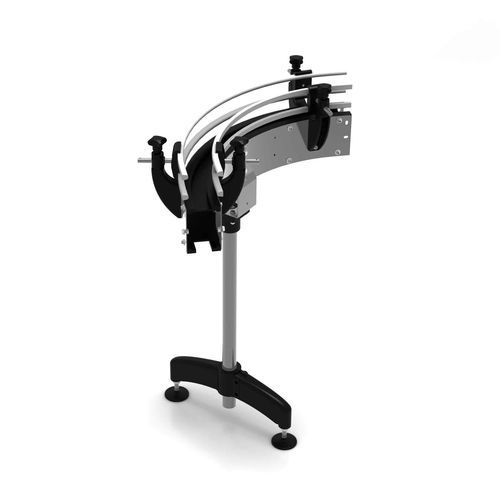

AXTRA conveyor curves are engineered sections that change the direction of conveyor belts handling single containers while maintaining stable movement and continuous product flow. They adapt the transport path to available layouts, reduce line complexity and enable reliable connections between upstream and downstream machines on bottling and packaging lines.

Applications

• Bottling and packaging lines for bottles, jars, flacons and other single containers
• Integration with cleaning, filling, capping, capsuling, labelling and packaging equipment
• Food, beverage, cosmetics and chemical production lines requiring hygienic and stable transport

Key features

• Change conveyor direction while preserving smooth movement of single containers
• Configurable by container shape, conveyor speed, curve angle and plant layout
• Adjustable guide rails for precise container guidance
• Adjustable or telescopic support leg for height and alignment adaptation
• Available in multiple curve angles (example: 45° version)
• Designed for easy integration and simplified layout adaptation

Technical specifications

• Product type: conveyor curve section for single containers
• Compatible containers: bottles, jars, flacons and similar single containers
• Configurable parameters: container dimensions/shape, conveyor speed, curve angle, guide rail settings
• Support: adjustable / telescopic support leg (documented for 45° version)
• Materials and hygiene: designed for clean transport; material selection depends on application
• Integration: compatible with cleaning, filling, capping, capsuling, labelling and packaging units
