Panel housing CPSS3353631

rectangularpolyesterfiberglass

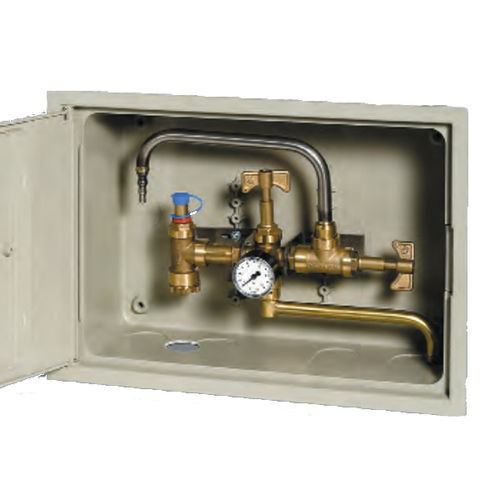

Hot molded fiberglass reinforced polyester cabinet manufactured by compression molding. Standard front panel “drinking water quality control”. Customized labeling on request. The closure is by means of a stainless steel latch driven by a chrome-plated brass shaft with allen head. Other lock (triangular, square) can be supplied on request.. On request, the polyester cabinet can be manufactured in sand color. VInlet valve: DN 20, anti-fraud and non-return angle-way seat made of CW617N brass; complies with the specifications of the UNE19804 standard; designed for connection to 25 mm OD polyethylene pipe. An inlet valve for 32 mm OD PE pipe can be supplied on request.. Outlet and bleed valves: DN20, angleway seat with butterfly, complies with the specifications of the UNE 19804 standard.. All dimensions in mm
