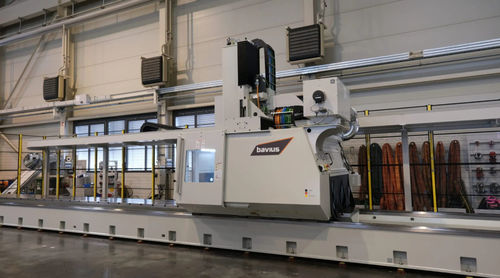

Profile CNC machining center PBZ® SC
5-axisuniversalfor composites

profile CNC machining center
profile CNC machining center
profile CNC machining center
profile CNC machining center
profile CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
universal
Machined material
for composites
Other characteristics
high-precision, cutting, for profiles
Y travel

1,100 mm (43 in)

Z travel

720 mm (28 in)

Rotational speed

28,000 rpm (175,929 rad.min-1)

Power

26 kW (35.35 hp)

Description

Profile machining center PBZ® SC Profile machining center with dynamic pendulum operation for maximum productivity LOADING AND UNLOADING PARALLEL TO PRODUCTION Do you want to reduce expensive non-productive times without installing additional automation? Thanks to pendulum operation, the PBZ SC creates two spatially separate workzones and thus permits loading and unloading parallel to machining. INTERFERENCE-FREE 6-SIDE PROFILE MACHINING With a small machine footprint and powerful spindle performance, it is possible to efficiently machine aluminum and steel profiles as well as composite workpieces with a maximum length of 24,000 mm. The stable machine construction guarantees high machining accuracy and quality with interference-free 6-side machining. AS FLEXIBLE AS YOUR REQUIREMENTS The PBZ SC profile machining center is not just configurable for customer-specific length requirements. With a wide range of options the PBZ SC can also be adapted to individual applications and material requirements. The machine concept also allows the choice between clamping vice and table versions. Powerful HPC/HSC machining from light profiles or solid material of aluminum and steel Interference-free 6-side complete machining up to 945 in with end machining Loading and unloading parallel to machining thanks to two workzones and pendulum operation Burr-free machining thanks to HSC technology Direct thread cutting without compensation chuck Solid machine design High productivity combined with small footprint
