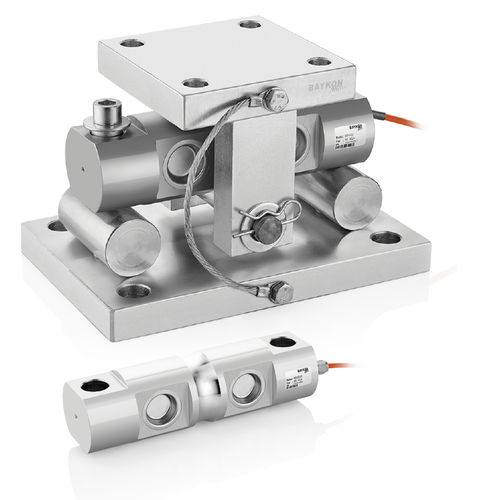

Model LAD420 weigh module is designed for BD420 type double ended beam load cells. The rugged self-checking module allows thermal expansion and contraction of vessels due to sunlight exposure or internal vessel reactions. It is perfect solution for tank / silo weighing systems.
It is designed to support a uniformly distributed load and will allow tilt in any direction up to a maximum of +/- 3°.
• Capacity range: 50-100 Klb (LAD420)
• Easy to install and maintain
• Easy and fast load cell replacement
• Lift-off protection for extra safety
• Eliminates the need for tie rods
• Standard galvanized steel
• Optional painted steel or stainless steel
