Relative pressure transmitter 132C
absolutethin-filmceramic

Relative pressure transmitter - 132C - BCM SENSOR TECHNOLOGIES bv - absolute / thin-film / ceramic
Relative pressure transmitter - 132C - BCM SENSOR TECHNOLOGIES bv - absolute / thin-film / ceramic
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Pressure type
relative, absolute
Technology
ceramic, thin-film
Output
analog
Mounting
flush diaphragm
Material
stainless steel
Protection level
rugged, IP67
Other characteristics
compact
Pressure range

Max.: 100 bar
(1,450.38 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

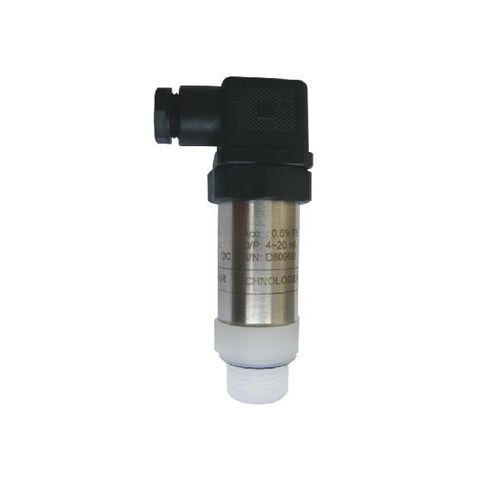

The 132C is a general-purpose pressure transmitter base on the BCM ceramic pressure sensor. The 132C features a flush diaphragm process connection and is specially designed for measurement of viscous fluids or media containing solids. The 131C consists of a ceramic diaphragm, stainless steel or PVF wetted part, and stainless steel housing. With numerous options of process connection and electrical interface, the model can be fitted into most common systems. Available pressure reference includes gauge, absolute, and sealed gauge. By selecting proper electrical interface, the 132C is able to reach the environmental protection rating up to IP67. Due to its compact and rugged design, this model is suitable for applications of processing and control operations such as hydraulics, pneumatics, test equipment, liquid level measurement, compressor and pump control, etc.
