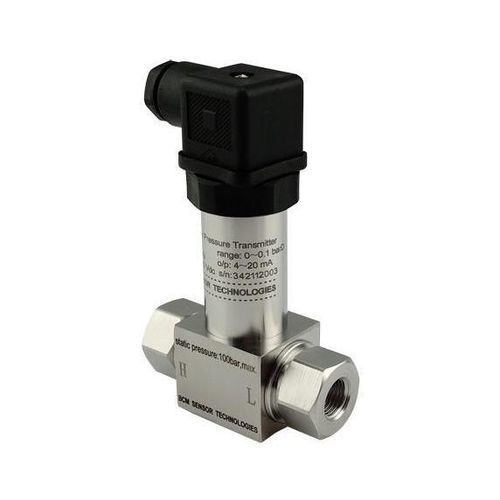

Differential pressure transmitter 219D

4-20 mA0-5 Vratiometric

Product description
Model 219D is a compact differential pressure transmitter derived from the 218D transducer family. It features a 316L stainless steel wetted construction with laser-welded assembly and a threaded process interface for straightforward installation. Available with male or female threads, the 219D is intended for differential pressure measurement of gases and dilute liquids. Measuring ranges cover approximately 0.1 bar up to 35 bar. Output options include analog and digital interfaces suited to smart valve integration. Accuracy reaches ±0.5% fs; a non-zero output at ZERO load facilitates diagnostics.

Key features

• 316L stainless steel wetted construction with laser welding
• Low-profile, compact transmitter with threaded process interface (female or male)
• Designed for differential pressure measurement of gases and dilute liquids
• Measuring ranges from ~0.1 bar up to ~35 bar (multiple discrete ranges available)
• Output options: 4–20 mA, 0–5 Vdc, 1–5 Vdc, 10%–90% Vs ratiometric, I2C, SPI
• Accuracy up to ±0.5% full scale (fs)
• Non-zero output at ZERO load for simplified diagnostics
• High static/overload capability (see specifications)

Product details (table)
Pressure range: 0~0.1 bar, …, ~20–35 bar
Pressure type: differential
Static / overload pressure: up to 1000% fs (max. 100 bar depending on range)
Output signal: 4–20 mA, 0–5 Vdc, 1–5 Vdc, 10%–90% Vs ratiometric, I2C, SPI
Accuracy: up to ±0.5% fs

Technical specifications

• Model: 219D
• Application: differential pressure measurement for gases and dilute liquids; suitable for smart valve applications
• Wetted material: 316L stainless steel
• Construction: laser welded
• Process interface: threaded (female or male), standard examples include G1/4
• Measuring ranges: from 0~0.1 bar up to 0~35 bar (examples: 0/0.1, 0/0.2, 0/0.35, 0/0.7, 0/1, 0/2, 0/3.5, 0/7, 0/10, 0/20 bar)
• Pressure reference: differential
• Static / overload pressure: 1000% fs for ranges ≤ 10 bar; up to 100 bar for higher ranges
• Output signals: 4–20 mA (standard), 0–5 Vdc, 1–5 Vdc, 10%–90% Vs ratiometric, digital I2C, SPI
• Accuracy: up to ±0.5% full scale
• Electrical interface options: DIN43650 connector (standard), PVC shielded cable (1.5 m), other plug-in connectors on request
• Special features: non-zero output at zero load to simplify diagnosis
