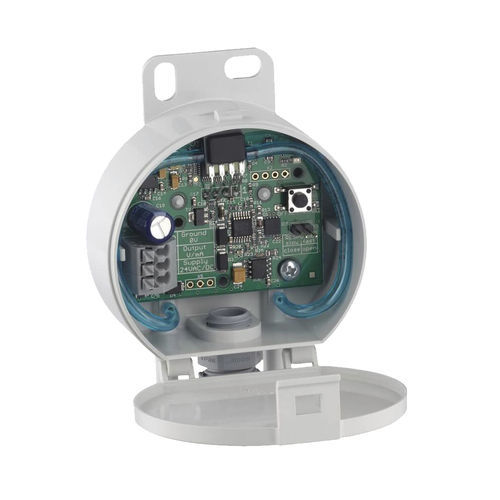

OEM pressure transmitter 982R Series
differentialvacuumpiezoresistive

OEM pressure transmitter
OEM pressure transmitter
OEM pressure transmitter
OEM pressure transmitter
OEM pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential, vacuum
Technology
piezoresistive
Output signal
with electrical output signal, DC output
Other characteristics
low pressure, compact, for pharmaceutical applications, for HVAC systems, two-wire, for OEM, OEM, CE, EMC, temperature-compensated, with long-term stability, economical, with integrated amplifier, fast response time, with amplified output, for building automation, custom, RoHS, with selectable measurement range
Process temperature

Min.: -20 °C (-4 °F)

Max.: 70 °C (158 °F)

Pressure range

Min.: 0 Pa (0 psi)

Max.: 200,000 Pa (29.01 psi)

Description

General description The differential pressure transmitters of the 982R series are used to measure differential pressure, overpressure and vacuum. They provide one adjustable pressure range and one output signal. Applications Monitoring of gaseous, non-combustible and non-aggressive media. Possible usage areas are: •Building automation, air conditioning systems and clean room monitoring •Valve and flap control •Filter, ventilator and blower monitoring •Control of air flows Adjustable pressure range The end of the pressure range can be reduced to 50% of its factory set full scale value simply by the use of a push-button.
