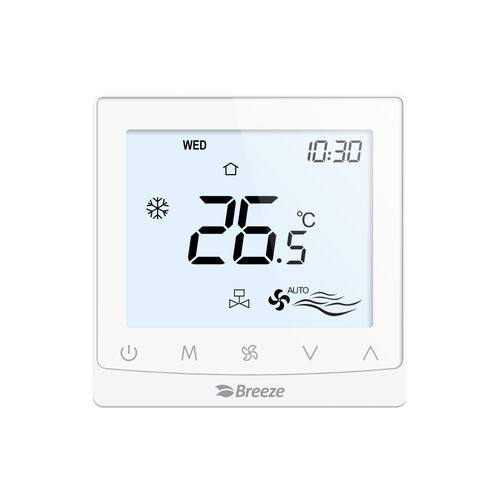

Programmable thermostat BC105-4DM

wall-mountedsurface-mount240VAC

FCU Thermostat – Precision Comfort for Smart Spaces Our FCU thermostat offers accurate climate control for modern buildings,modern design, and seamless integration into BMS platforms. 3 speed Fan and on/off valve Control 2-pipe and 4-pipe system compatibility Modbus RTU and RS485 communication for easy BMS integration Full 7-day programmable scheduling Heating, cooling, and ventilation modes Open window detection and adaptive temperature compensation Full OEM/ODM customisation: Logo, interface, colour, packaging CE Certification Key Features Supply Voltage: 85~230Vac /24Vac.50/60Hz Control Device: 2 or 4pipe FCU DX Unit Switch Rating: 5A (7A as optional) Max.Fan Load: 1A/3A inductive 3A resistive Fan Control: 3-speed fan Valve Control: on/off output Heat/Cool: Cool&Heat&Auto Remote Sensor: NTC10K Communication: Modbus Hotel Card: Yes-Dry contact(window/door/PIR sensor) Backlight: Black&White Temperature Display:Celsius/Fahrenheit Programmable:5+2/7 Days 4 Periods Setpoint Range: 5~35℃ Temperature Display - :0.1℃ Ambiente - Storage:-20℃-60℃ Operating: 0~50°C Humidity:5~95% Product Color: White RAL9010 Cycling Fan: Yes Approval: EN60730-1 CE Standard Installation: Flush/Surface Mounting Housing Material: PC+ABS IP Grade: IP 30
