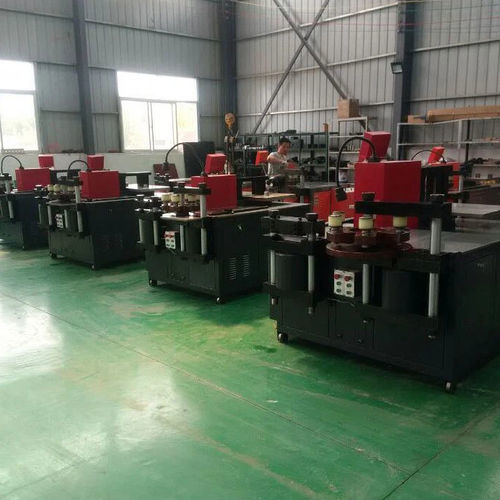

Cutting busbar machine

punchingbending

Through the flexible replacement of the mold can also complete the flattening, twisting, compression cable joints, the copper bar for cutting, flattening, punching, bending and other special processing 1. The shear station adopts a double-column shear structure with stable, strong and even shear force; 2. Cut with file and shear; 3. A pair of sharp scissors + polyurethane pad; Therefore, the workpiece cut out of the overall processing is flat, no waste, no burr, no collapse Angle. 1. The punching station adopts the tooth type four-mode integrated turntable, which ensures the absolute alignment between the upper die and the lower die, improves the concentricity of the die, and prolongs the life of the die; 2. Also avoid the damage of punching die caused by frequent replacement of the die. 3. Because we are a manufacturer, we can provide four, six or eight mode turntable structure according to the user's request. 4. The punching station is equipped with a mechanical bidirectional positioning device. During the working process, it is not necessary for operators to draw a cross line or a drawing punch at the position where the copper and aluminum row needs to be punched to save working time and improve work efficiency. 5. The punching mold adopts polyurethane pad + spring design: it makes the mold return material faster and the workpiece effect better. 6. The shearing and punching station adopts accurate 60mm large-diameter hydraulic column: to make the shearing force and punching force more stable, strong and uniform, and the workpiece processed has better effect.
