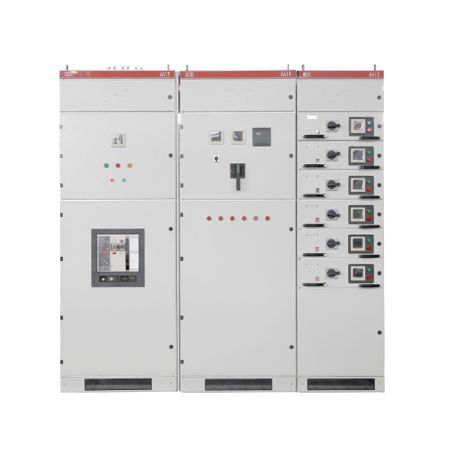

Low-voltage switchboard GCK

modular

Overview GCK Low Voltage Modular Switchboard applies in alternative current power distribution systems at a frequency of 50Hz, a rated voltage of 380V and a transformer’s rated capacity up to 1000kVA. The product can be used as the equipment for substation, hotel and mining enterprise as power distribution equipment, power source of lighting and motor controls. Features GCK Low Voltage Modular Switchboard applies in alternative current power distribution systems at a frequency of 50Hz, a rated voltage of 380V and a transformer’s rated capacity up to 1000kVA. The product can be used as the equipment for substation, hotel and mining enterprise as power distribution equipment, power source of lighting and motor controls. Parameters Rated voltage : 380、660V Rated current  Horizontal Busbar: 1250、1600、2500、3150A Vertical Busbar: 400、800、1200、1600A Rated insulation voltage : 500、1000V Rated short time withstand current: 30、50kA Rated peak withstand current: 63、105kA Degree of protection: IP2X、IP3X
