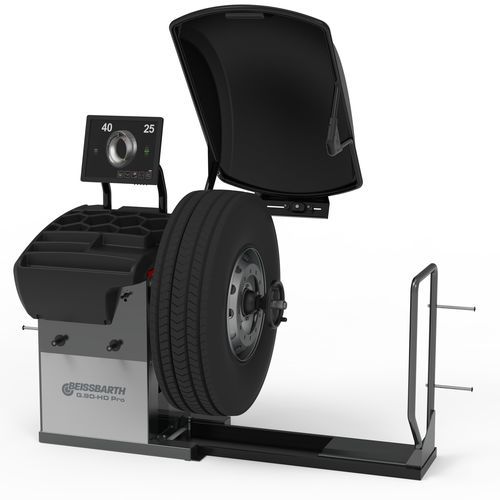

Truck wheel balancer 1 692 501 006

for busesautomatic

Truck wheel balancing machine with diagnostic function | Mechanical clamping | Automatic measuring arm | 19" touchscreen | Inner line laser | Wheel guard with sonar for steel and aluminum wheels | Height-adjustable flange | Height deviation sonar | Hub matching Diagnostic wheel balancing machine for buses and trucks with height-adjustable flange Height-adjustable flange: Easy clamping with the wheel on the ground instead of mid-air No separate wheel lift required Slide with only 59mm build height enables easier lateral movement Measurement and balancing: Balancing of truck wheels in 8 seconds Wheel stopping in exact position via electromagnetic brake LED for enhanced visibility when placing weights Inner line laser for precise weight positioning Split program for dividing and hidden attachment of weights behind the spokes Detection of wheel data: Automatic measuring arm for distance and diameter measurement and weight placement Extended measuring arm up to 32" rim diameter Automatic selection of clip-on or adhesive weight program Highest measurement accuracy +/- 0.5g Wheel guard with integrated sonar: Automatic detection of wheel width for steel and aluminum wheels No manual input required with measuring gauge Balancing program starts automatically upon closing the wheel guard 19" touchscreen monitor: Graphical representation of all processes Simplifies correct balancing with guided workflows Operable even with gloves Quick clamping: Mechanical clamping with quick clamping nut Stable 40mm shaft Handles wheel weights up to 200kg
