The Bekum insertion and robot technology allows three-dimensional blow-moulded parts such as 3D filler necks and air ducts to be produced economically and with virtually no waste. Identical processes in the 1st and 2nd station ensure a high repetition accuracy when doing so. The distribution of the layer thickness is optimised by using a 7-layer spiral mandrel extrusion head. This processes the plastic material with high precision, and minimises the need for the cost-intensive barrier material EVOH. An important feature for ensuring flexibility in production is offered by simultaneous production of two different articles on each clamping unit.

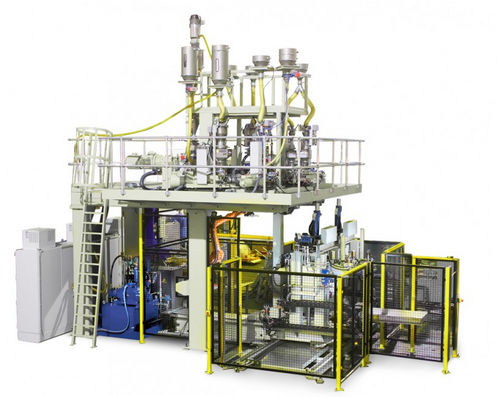

Robot blow-moulding machine for 3D tank filler neck made of 7 layers
Optimised material handling and extrusion management due to separate working platforms
Mobile blow mould for fully automated insertion technology
Different products can be produced simultaneously on each clamping unit (side A and B)!
Separate functions and operation possible
Automatic WDS correction by means of camera-based parison length management
