UV hand lamp UV-Handlampe

hardeningportable

Application:
The Beltron UV hand lamp is intended for mobile use under intense UV irradiation for curing fillings and bonding of materials such as glass or plastic. With suitable filters (e.g. blacklight) it can also be used for fluorescence testing.

Design:

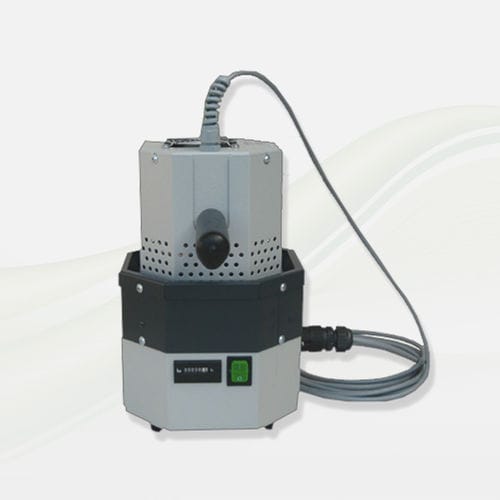

The Beltron UV hand lamp features a 250 W UV bulb with a separate ballast. It delivers high radiated power (approx. 800 mW/cm²) and is designed for operator convenience. The lamp head remains cool during extended use thanks to optimized housing cooling and may be placed in the docking station on the ballast without restriction. The docking station is designed to prevent stray light exposure. Bulb options include iron (Fe), mercury (Hg) or gallium (Ga). Standard cable length between lamp and ballast is 4 m. The base houses the main switch, power switch and hour meter.

Details:

• Separate ballast
• High radiated power (approx. 800 mW/cm²)
• 4 m cable between lamp and ballast (standard)
• Hour meter on base

Advantages:

• 60 years manufacturing experience Made in Germany
• Efficient, even UV curing
• Very short curing times
• Energy-saving system options
• Immediate further processing possible
• High scratch resistance and glossy finish
• Durable with increased chemical resistance

Uses / Applications:

• Printing industry
• Electronics industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Technical Information:
Total dimensions: 196 x 196 x 304 mm
Total weight: approx 6 kg
Lamp weight: approx 1.5 kg
Bulb: 250 W (options: Fe, Hg or Ga)
Light intensity: approx 800 mW/cm²
Power consumption: 320 W
Filters: WSG, QRZ, SLF (blacklight option)

Characteristics / Technical specifications:

• Model: UV hand lamp
• Brand: Beltron
• Bulb power: 250 W
• Filling options: Iron (Fe), Mercury (Hg), Gallium (Ga)
• Radiated power / Light intensity: approx 800 mW/cm²
• Power consumption: 320 W
• Cable length (lamp to ballast): 4 m
• Cooling: optimized housing cooling; docking station allows cold storage on ballast
• Features: separate ballast, docking station preventing stray light, hour meter, main and power switches
• Available filters: WSG, QRZ, SLF (blacklight available)
• Total dimensions: 196 x 196 x 304 mm
• Total weight: approx 6 kg; lamp weight approx 1.5 kg
