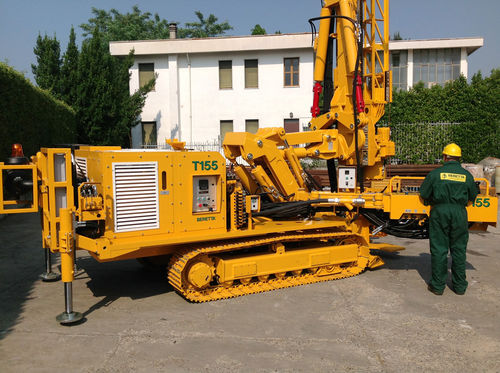

Multifunction drilling rig T155

crawlerrotaryhydraulic

T155 Multipurpose hydraulic rig with the ADVANCED kinematic studied in Beretta, which is able to zoom the mast without any weary part. T155 is ideal to drill the classic drilling of ground engineering micropiles, jet grouting, soil nailings. As all Bereta rigs can be equipped with several rotary heads with high drilling performances. The ADVANCED kinematic is also the best solution for Jet Grouting field, because of it increases significantly the stability-center of gravity during the drilling. TECHNICAL NOTES EU US ENGINE 126 KW170 HP MAST WORKING STROKE 4000-6300mm13,12 - 20,66 ft MAST PULL-PUSH 90 KN20230 lbf WEIGHT 14 ton30864 lb Rotary Head Type TORQUE RPM 54-1500 225-2300 daNm 2288-17000 lb ft23-234 57-4V 78-17042 daNm 576-13000 lb ft 25-572 55-8V 55-1900 daNm 406-14000 lb ft30-1050 RMS-415 DOUBLE 600-3000 daNm - casing 187-936 daNm - rods18-90 - casing 41-204 - rods
