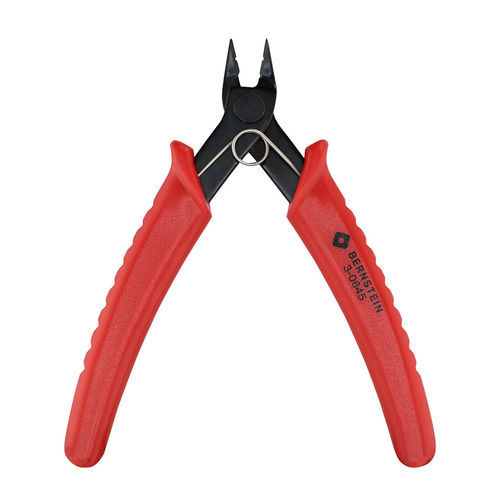

Side cutting wire stripper 3-0645

for electronicsfor wiremicro tip

Overview

These compact stripping mini side cutters (article 3-0645) are designed for electronics work: they strip fine wires and provide a full-flush cut on soft copper wires up to Ø 1.0 mm. The tool features an integrated stripping hole for very fine wires and pointed, slightly curved cutting edges to reach into tight spaces.

Key features

• Stripping range for fine wires: 0.4–0.65 mm (22–26 AWG)
• Full-flush cut (cut completely flush without side face)
• Cutting capacity (soft/medium/hard/piano Ø in mm): 0.8 / 0 / 0 / 0
• Head width: 10 mm
• Blade length: 8 mm
• Material: tool steel, HRC 56–58
• Surface finish: burnished
• Handle: 1-component non-slip plastic
• Overall length: 130 mm
• Weight: 80 g

Area of application

Electronics mini side cutter suitable for soft wires such as copper or similar uncoated conductors up to Ø 1.0 mm (approx. 18 AWG). The integrated stripping hole is intended for precise stripping of very fine wires (0.4–0.65 mm / 22–26 AWG).

Technical description

Integrated stripping function for fine wires (0.4–0.65 mm). Cutting edges are ground to deliver a flush cut on soft conductors. The pointed, slightly curved jaws allow access in confined spaces. The tool is intended for soft wires; use on excessively hard wires or nails can damage the cutting edge. Manufactured from tool steel with a burnished surface and fitted with ergonomically shaped, non-slip plastic handles.

Technical specifications

• Article number: 3-0645
• Stripping range: 0.4 - 0.65 mm (22 - 26 AWG)
• Cutting capacity (soft/medium/hard/piano Ø in mm): 0.8 / 0 / 0 / 0
• Full-flush cut: Yes
• Head width: 10 mm
• Blade length: 8 mm
• Material: Tool steel (HRC 56-58)
• Surface finish: Burnished
• Handle: 1-component non-slip plastic
• Overall length: 130 mm
• Weight: 80 g
