Locking pliers set 3-650-V

needle-noseflat noseround-jaw

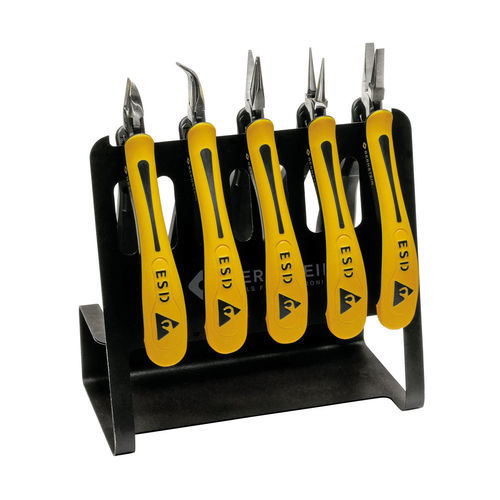

ESD pliers set CLASSICline VARIO 5 pcs is a five-piece ESD-safe pliers set supplied with a practical VARIO ESD tool holder, designed for use in ESD-protected areas and electronics work. The tools are made of high-quality tool steel with dissipative coatings and ergonomically shaped ESD handles for safe handling of sensitive electronic components.

Key features

• Includes practical VARIO tool holder
• Dissipative coating on tool holder: 10^5 ohm
• Cutters cutting capacity (soft / medium / hard / piano) Ø in mm: 1.5 / 1.2 / 0.4 / 0
• Head width: approx. 11 mm
• Material: high-quality tool steel (hardness HRC 56-58)
• Surface: brightly polished (mirror-like)
• 2-component ESD plastic handle, ergonomically shaped, dissipative between 10^6 and 10^9 ohm
• Set measures: 150 x 190 x 80 mm
• Weight: 750 g

Content

• 5-090-0 ESD tool holder VARIO (8 slots)
• 3-601-15 ESD side cutters CLASSICline semi flush 115 mm
• 3-631-15 ESD round nose pliers CLASSICline, not serrated jaws, 120 mm
• 3-632-15 ESD flat nose pliers CLASSICline, not serrated jaws, 120 mm
• 3-633-15 ESD snipe nose pliers CLASSICline, not serrated jaws, 120 mm
• 3-634-15 ESD snipe nose pliers CLASSICline, not serrated jaws, 120 mm

Technical description
The pliers are tested according to DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for use in ESD-protected areas. The VARIO tool holder is made from sturdy 1.5 mm sheet steel with a high-quality dissipative black powder coating, holds pliers, tweezers and screwdrivers (max. Ø 9 mm), and can be set up or wall-mounted. The holder features a lower recess for quick identification of tool tips and a rear locking aid to keep tools in position.

Technical specifications

• Coating (tool holder): dissipative, approx. 10^5 ohm
• Handle dissipation: between 10^6 and 10^9 ohm
• Tool material: special/high-quality tool steel, HRC 56-58
• Surface finish: brightly polished (mirror)
• Cutting capacities (soft / medium / hard / piano): Ø 1.5 / 1.2 / 0.4 / 0 mm
• Head width: approx. 11 mm
• Set dimensions (W x H x D): 150 x 190 x 80 mm
• Weight (complete set): 750 g
• Standards: tested to DIN EN 61340-5-1, 61340-2-1 and 61340-2-3
