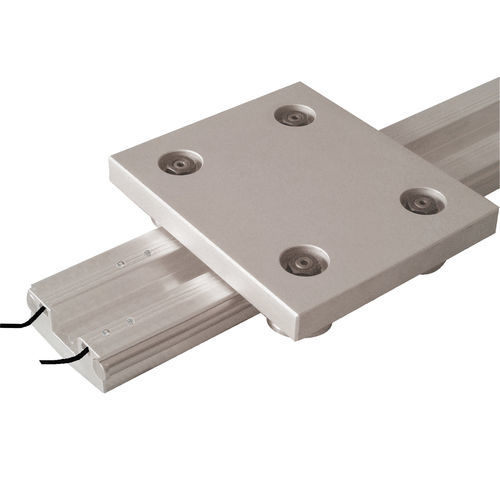

Slide linear guide LGAS seriessteel
Add to favorites
Compare this product
Characteristics
- Technology
- slide
- Other characteristics
- steel
- Rail width
Max.: 4,000 mm
(157.48 in)Min.: 1,000 mm
(39.37 in)
Description
Use: simple and safe system to use when you want the guide to remain fixed and the carriage to slide or vice versa the carriage to remain fixed and the guide to slide.
Material sliding shafts in hardened, ground and chrome-plated CF53 steel, profile and carriage in anodised aluminium, steel rollers.
ASSEMBLY TIPS:
In the profile centreline, a thin groove shows the axis where the holes for structure anchoring must be drilled (we recommend that you drill every 200 mm; use M8 screws).
Operations for opening the sensor housings.
