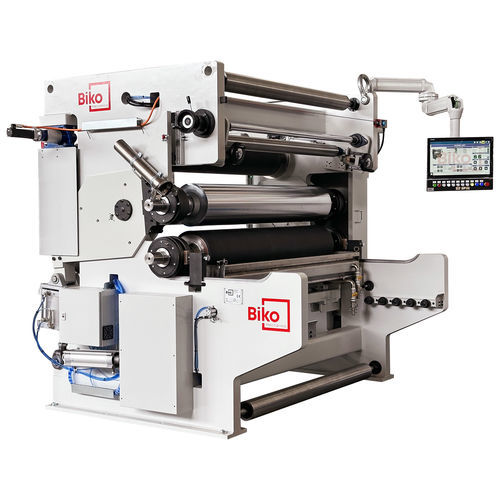

Resin coating and laminating machine

coated abrasive

The Resin Coater is designed to be integrated in coated abrasive production lines. The coater is able to apply first coat (Maker), second coat (Sizer) or even be used for Third Coating application. Available in various max web widths, as standard it is produced for 1650 mm or 2050 mm wide coating surface. Technical Data - Strong frame composed of two side shoulders and connection steel tubes - Top shaft lifting, on which web is folded - Top shaft hard chromed and independently motorized by servo motor - Bottom shaft fixed, with fine adjustment by servo motor - Bottom shaft rubber covered and independently motorized by servo motor - Bottom shaft housing quickly openable for an easy shaft removal and replacement - Stainless steel glue basin, mounted on vertical moving frame - Glue basin is easily removable and replaceable - Glue basin, optionally, may be heated - Brake roll, 300 mm diameter, rubber covered with pneumatic brake - Brake roll with angle adjustment, motorized - Smoothing roll, motorized, with independent side position adjustment
