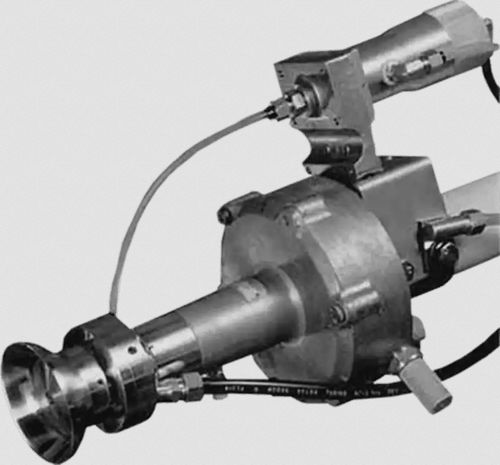

Paint atomizing nozzle J4 Turbo Bell

atomizing

Paint consumption significantly reduced Equipment costs reduced due to the simplified paint booth Labor costs down Coating environments improved Paint losses and cleaning costs reduced Fine atomization due to high-speed rotation and fine finish achieved High Transfer Efficiency The rotation speed, shaping air pressure and delivery can be freely changed by remote control operations to achieve the best value easily for various coating conditions. Applicable to a wide range of workpieces Supported materials expended 2-component coating material mixed inside the bell Specifications Bell Cup Diameter - Φ 60mm Bell rotation speed (Max.) - 30,000rpm Air Consumption - Turbine air : 150 L/min Shaping air : 350 L/min Seal Air : 30 L/min250 mL/min Max fluid delivery(recommended - 250 mL/min Cascade Max. Output Voltage - DC-90kV Weight - 7.0kg
