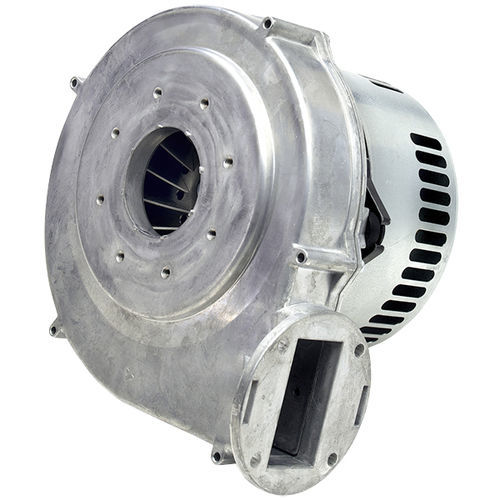

Combustion blower Nautilair® 7.6"
aircentrifugalsingle-stage

Combustion blower - Nautilair® 7.6" - BISON - air / centrifugal / single-stage
Combustion blower - Nautilair® 7.6" - BISON - air / centrifugal / single-stage
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Applications
boiler, combustion
Voltage / frequency
100-240 V, 120 VAC, 240VAC
Norms
UL, CSA, REACH compliance, RoHS
Other characteristics
compact, variable-speed, brushless DC
Flow

225 ft³/min
(6.371 m³/min)

Operating pressure

112 mbar
(1.624 psi)

Description

Reach pressures up to 45" of H2O and flow rates up to 225 CFM. These blowers support air power up to 0.5M BTUs per hour. Standard and high output versions are available with customization options to fit your specifications. Power Density Industry-leading design enables the highest output from the smallest blower size. Long Life Brushless design eliminates brush failure and extends life up to 25,000 hours – virtually maintenance-free. Variable Speed Completely programable for various speed profiles and several different speed signals (0–10VDC, PWM, 4–20mA, and mechanical). Compact Design Lightweight, space-saving design facilitates easy installation of the blower into the boiler or other equipment. Markets & Applications Boiler & Hot Water Heater Blowers Cooling High-Temp Applications Blowers Food Service Equipment Blowers Fume Evacuation System Blowers Radon Mitigation System Blowers
