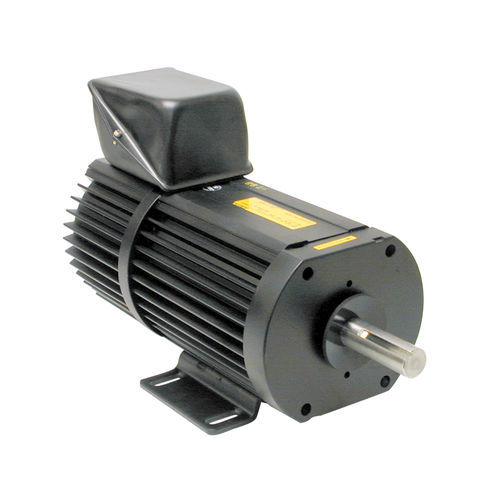

Brushless motor ROTRON®DCDC 24 V48 V
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- brushless, DC
- Voltage
- DC 24 V, 48 V, 36 V
- Protection class
- rugged, maintenance-free
- Applications
- for pump, blower, for fans, for compressors, agricultural, for automotive applications, for railway applications
- Power
200 W, 400 W, 542 W, 765 W
(0.272 hp, 0.544 hp, 0.737 hp, 1.04 hp)- Intensity
0.5 A, 1.3 A, 1.7 A, 2.5 A
- Torque
0.053 Nm, 0.282 Nm, 0.353 Nm, 0.565 Nm
(0.03909 ft.lb, 0.20799 ft.lb, 0.26036 ft.lb, 0.41672 ft.lb)- Rotational speed
1,200 rpm, 1,525 rpm, 2,050 rpm, 3,900 rpm
(7,539.82 rad.min-1, 9,581.86 rad.min-1, 12,880.53 rad.min-1, 24,504.42 rad.min-1)- Operating temperature
70 °C, 72 °C, 85 °C
(158 °F, 162 °F, 185 °F)
Description
Motor system for fans, blowers, pumps and compressors up to 1.25 hp. Its Electronically Commutated DC motor design provides long life up to 60,000 hours and offers maintenance-free operation by eliminating brush failures and repairs.
Long Life
Electronically Commutated DC (ECDC™) motor series is built to last up to 60,000-hours.
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
Maintenance Free
Brushless motor design eliminates brush failures and repairs. Decreases downtime.
Markets & Applications
Cool Batteries, Electronics and Drive Motors As Well As Heat and Cool Interiors
Buses & Motorcoaches
Light Trains & Locomotives
Construction Equipment
Agricultural Equipment
