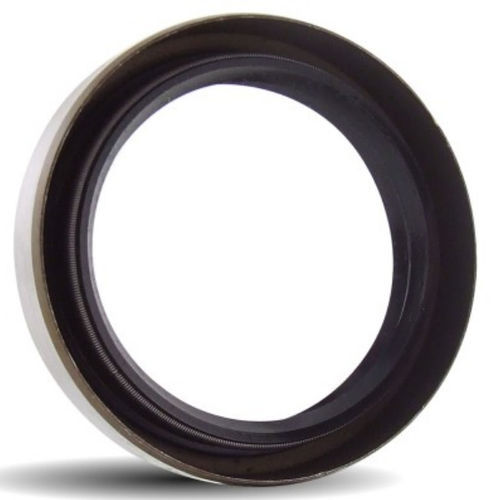

Lip seal MS series
V-ringNBRshaft

lip seal
lip seal
lip seal
lip seal
Add to favorites
Compare this product


Characteristics

Type
lip
Configuration
V-ring
Material
NBR
Application
piston, rod, for oil, shaft
Other characteristics
flexible, radial, labyrinth
Diameter

Max.: 95 mm
(3.74 in)

Min.: 6 mm
(0.236 in)

Outer diameter

Max.: 120 mm
(4.724 in)

Min.: 14 mm
(0.551 in)

Description

Standard and Metric Oil Seals have a flexible lip that rubs against a shaft or housing to prevent the leakage or contamination of fluids and debris. For proper installation, the seal lip should point towards the lubrication being contained. Some oil seals have a spring to help keep the lip in contact with the shaft. The sealing orientation and direction is important to consider for oil seals and grease seals. Rod seals are radial seals. The seal is press-fit into a housing bore with the sealing lip contacting the shaft. Piston seals are radial seals. These seals are primarily used for rotary applications only. V-ring seals are all rubber seals used primarily to exclude dirt and other contaminants. V-rings stretch over a shaft and seal against the side of a housing or other machine component. There are many different styles of clearance, or labyrinth seals.
