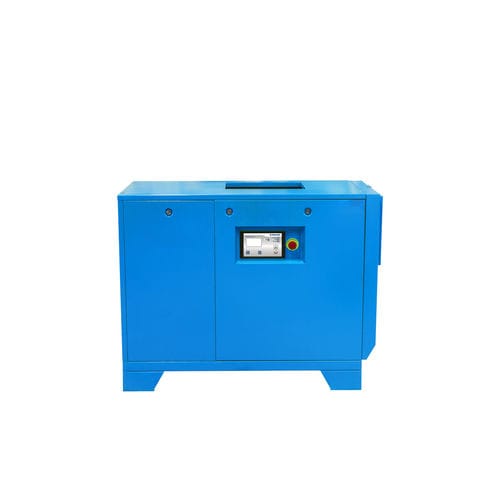

Screw compressor S eco
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
belt-driven
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 4.8 m³/min
(169.51 ft³/min)

Min.: 0.49 m³/min
(17.3 ft³/min)

Power

Max.: 30 kW
(40.79 hp)

Min.: 4 kW
(5.44 hp)

Length

1,240 mm, 1,250 mm
(49 in, 49 in)

Width

950 mm, 1,335 mm
(37 in, 53 in)

Height

650 mm, 850 mm
(26 in, 33 in)

Weight

Max.: 590 kg
(1,300.7 lb)

Min.: 246 kg
(542.3 lb)

Description

Compressed air system with high availability. Product Screw compressor with belt-driven drive system, oil-lubricated advantages base control with microprocessor system BOGE airend made in Germany low compressed air temperature due to effective aftercooler
