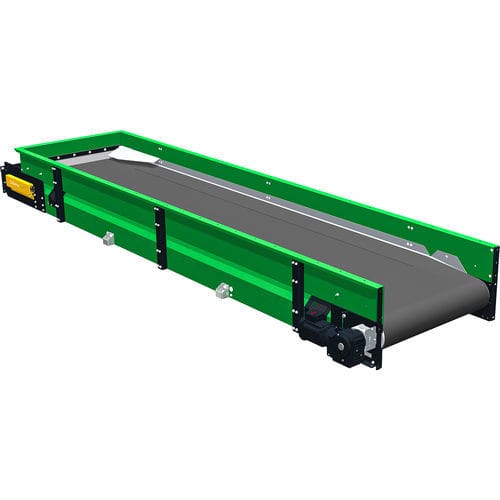

Belt conveyor HBGT

rollerchainsorting

Solid construction & proven result The HBGT Conveyor is a sliding belt conveyor used especially to move light, voluminous materials. It is perfectly suitable for use as a sorting belt, because of its flat, enclosed construction. On top, the cloth slides over a steel plate and is taken across support rollers on the other side. The frame of the sliding belt is of modular construction: a motor section and a tension section with, in between, modules of different lengths. Every module consists of 5mm sheet steel reinforced with ribs, providing a solid construction. We can supply the side screens of the belt in different heights. A drum puts the sliding belt into motion. An SEW motor reductor, mounted directly on the shaft, drives this drum. The HBGT conveyor is extremely suitable as a sorting belt thanks to its flat design with an attractive price/performance ratio We built up the HBGT conveyor belt from several layers of rubber and canvas. The rubber belt slides on top of the frame sections of the conveyor. On the bottom side, rollers support this. These support rollers are not more than 2500 mm apart. The rubber belt is resistant to wear and tear. Belts that are resistant to oil and grease are optionally available. Also, the belt can be equipped with cleats of different heights. The tension roller tensions the rubber belt. This roller is suspended by two tension bearings that have been placed in the tension section. An adjusting nut is located on the chain tighteners of each side of the frame. These nuts pull the conveyor’s tension roller backward, increasing the belt tension. By tightening or loosening one side of the tensioner section you can steer the belt.
