Personnel security interlocking door QUARTZ

solidfor access control

Short description

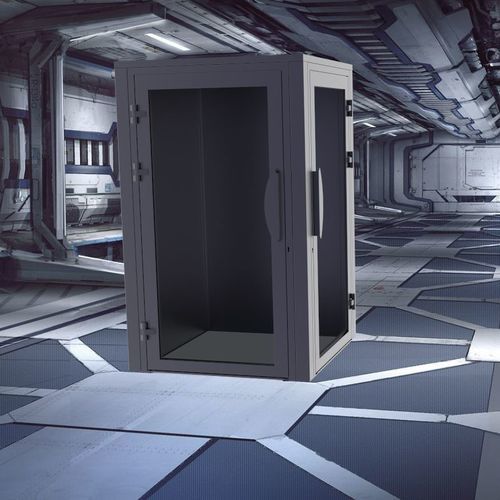

The QUARTZ airlock is a single-access security airlock with a one-piece structure designed to secure access to sensitive areas.

Detailed description
The QUARTZ is a single-access security gate with a one-piece structure. Configurable on all four sides, it can be specified to provide the required levels of ballistic and/or burglary protection. It has been tested to European standards EN 1522 (ballistic), EN 1627 (burglary) and EN 13501 (fire, as an option). The QUARTZ integrates with CARAPACE joinery, CSM partitions and BPS doors to meet target protection classes.

Main features

• Ballistic protection: FB4, FB6, FB7 (according to EN 1522)
• Anti-burglary resistance: CR4, CR5 (according to EN 1627)
• Accessibility: PMR / PSH compatible (Yes)
• Detection: Yes (detection of malicious acts)
• Fire resistance: Yes (fire resistance available as an option)
• Configurable on all 4 sides
• One-piece structure

After-sales support (product-related information only)
Preventive maintenance and support are provided by Bolloré Protection (manufacturer's support and maintenance services).

Technical specifications

• Product type: Single-access security airlock / security gate
• Structure: One-piece
• Configuration: Configurable on all 4 sides
• Ballistic resistance levels: FB4, FB6, FB7 (EN 1522)
• Burglary resistance classes: CR4, CR5 (EN 1627)
• Fire resistance: Option available (tested to EN 13501)
• Accessibility: PMR / PSH compliant
• Detection: Integrated detection of malicious acts
• Compatible infills: CARAPACE joinery, CSM partitions, BPS doors
• Typical applications: Industrial buildings, tertiary, banking, nuclear sites, data centers, airports, retail and distribution
