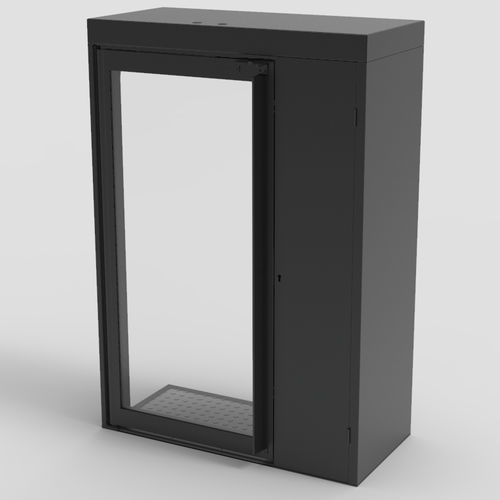

Swing door B620

glassglazedindustrial

Overview
The B620 single-person door, glazed or opaque, secures access to a sensitive area by enforcing one-person passage. Its passage slot reduces the risk of two-person fraud. PRM-compatible, the door can be operated manually from the inside depending on badge settings and can be configured for flow management. Throughput: 10 to 12 people per minute. Typical applications: industrial, commercial, banking, nuclear, data centre and airport buildings.

Operation

• Enforces single-person access (passage unicity).
• On access authorisation the user opens the door which locks to force passage through the slot in single-person mode.
• In PRM mode the door does not lock and opens fully to provide a 900 mm passage for people with reduced mobility or carts.
• Manual unlocking provides a logistic passage width of 1435 mm.

Emergency evacuation
In case of building evacuation the door unlocks in the evacuation direction. Doors can be pushed open if a green manual release located in the secure zone is activated.

Customization
The full RAL colour chart is available for customization (e.g. RAL 9005, RAL 5000). Opening orientation: right or left pivot. Filling: glazed or opaque.

Security

• The passage slot limits passage width to ensure single-person transit.
• Anti-crossing system reduces reverse-entry attempts.
• Accepts anti-intrusion safety glazing.
• Locked by 2 electromagnetic locks certified NFS 61-937.

Options

• 3-point mechanical over-locking.
• Fixing subframe available.
• Optional equipment: privacy film, viewing port, specific handles.

Technical specifications

• Model: B620
• Standard passage width: 900 mm (1UP)
• Logistic passage width (manual unlock): 1435 mm
• Throughput: 10 to 12 people per minute
• Operation modes: single-person mode, PRM mode, manual unlock for logistics
• Accessibility: PRM compatible
• Filling: glazed or opaque
• Opening orientation: right or left pivot
• Security: accepts security glazing; anti-crossing system
• Locking: 2 electromagnetic locks certified NFS 61-937
• Options: 3-point mechanical over-locking, fixing subframe, privacy film, viewing port, specific handles
• Origin: designed and manufactured in France
