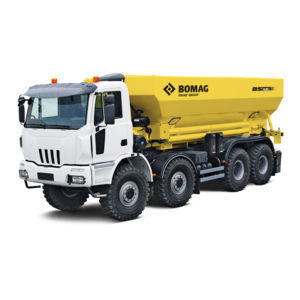

Truck-mounted binder sprayer BS 16

Overview
The BS 16 binder spreader delivers precise, even application of powdered binders such as cement, lime or fly ash to stabilise and improve substrates. The automatic spreading quantity control applies a pre-set binder quantity. The total spreading width is mechanically adjustable in four steps from 2.4 m to 1.0 m. The machine design uses a compact hydraulic layout to facilitate operation and maintenance.

Key features

• Independent drive with enclosed hydraulic unit
• Closed tank options: 10 m³ or 16 m³
• Computer-controlled homogeneous dosing with adjustable spreading width
• Speed-dependent dosing with radar speed detection
• Compressed-air filling from left and right

At a glance
Weight (example): 20,860 kg
Working width (example): 2,400 mm
Tank volume (examples): 10 / 16 m³
Spreading width: mechanically reducible from 2.4 m to 1.0 m in four steps

Standards

• Speed-dependent dosing
• Radar sensor for speed detection
• 2 LED working lights at the rear
• Compressed-air filling from left and right
• Variable working width

Options

• Weighing plate for dosing control
• Electronic weighing device
• Camera system at the rear
• Big-Bag or silo filling device from above
• Pneumatic compressor 1,200 l – 8 bar for cleaning
• Pneumatic compressor 8,000 l – 2 bar for filling
• High-pressure cleaner (BS 16)
• Water tank for high-pressure cleaner (BS 16)

Maintenance & Service
All maintenance points are easily accessible. Large service doors with simple locks provide good access for inspection and repair. Original parts and BOMAG service solutions are available to maintain machine availability and productivity.

Characteristics / Specifications

• Model: BS 16
• Application: Even application of powdered binders (cement, lime, fly ash, mixed binders) for soil improvement or consolidation
• Drive: Independent drive with enclosed hydraulic unit
• Dosing: Computer-controlled homogeneous dosing; speed-dependent dosage
• Spreading width: Variable; mechanically reducible from 2.4 m to 1.0 m in four steps
• Tank options: Closed tank 10 / 16 m³ (depending on configuration)
• Weight (example): 20,860 kg
• Working width (example): 2,400 mm
• Filling: Compressed-air filling from left and right; Big-Bag / silo filling option
• Optional equipment: Weighing plate, electronic weighing device, camera system, pneumatic compressors, high-pressure cleaner and water tank
