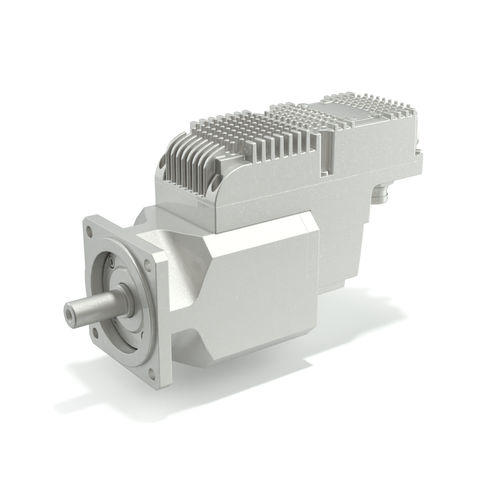

Integrated-drive servomotor iBMD series
DCsynchronousIP65

integrated-drive servomotor
integrated-drive servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Protection class
IP65
Other characteristics
CANopen communication, EtherCAT, integrated-drive, servo-driven
Torque

Min.: 2.7 Nm (1.9914 ft.lb)

Max.: 36 Nm (26.5522 ft.lb)

Description

iBMD can be controlled by a master or in standalone mode. It reduces both cable and electrical cabinet costs. Total unit size is reduced by more than 35% compared with a classic servo drive solution. Main options Variants: • EtherCAT or CANopen variant • Hiperface encoder: Multi-turn or single turn • Optional holding brake • Optional flywheel • Optional keyway DC power supply units • iBMD DC 20 A: DC supply for 20A/10 kW • iBMD DC 40 A: DC supply for 40A/20 kW Cables: • CAN cables for connection between CANopen master and iBMD • CAN cables for connection between 2 iBMD devices • Power cables for connection between DC power supply and iBMD • I/O cables for connection to iBMD • EtherCAT cables for connection between EtherCAT master and iBMD • EtherCAT cables for connection between 2 iBMD devices Covers for IP65 protection: • Covers for IP65 degree protection for unused connectors Torque range 2.7 ... 36 Nm Degree of protection IP65 (EN 60529) Certifications CE Power supply & Power range 400 Vac system voltage / 560 Vdc DC link voltage
