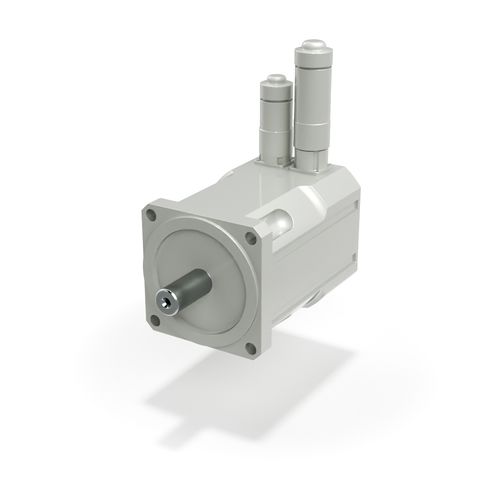

Synchronous servomotor BCR series
DC400V230V

synchronous servomotor
synchronous servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
400V, 230V
Protection class
IP65, IP67, EMC, robust
Applications
high-temperature
Torque

Min.: 0.2 Nm (0.1475 ft.lb)

Max.: 115 Nm (84.8196 ft.lb)

Rotational speed

2,000 rpm, 3,000 rpm, 4,500 rpm (12,566.37 rad.min-1)

Description

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions. Main options DC brake Optional 24 Vdc Feedback Resolver (default) Optional Hiperface encoder (single- or multi-turn) Temperature sensor PTC included Sizes 7 flange sizes Torque range 0.2 ... 115 Nm Degree of protection IP65 IP67 (optional) Rated speed 2000, 3000, 4500 rpm (depending on selected torque) Inertia 0,06 ...190 (kgm² x 10-4) Certifications CE, UL DC Brake Optional 24 Vdc Conformity 2014/34/EU (LVD) and 2014/30/EU (EMC) Power supply & Power range 230, 400 Vac
