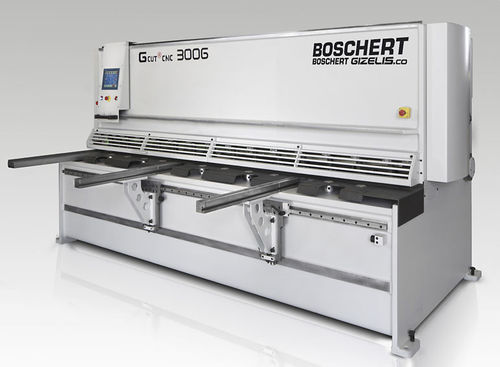

Hydraulic shear G-Cut® seriessheet metalswing-beamCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Application
- sheet metal
- Type
- swing-beam
- Other characteristics
- CNC
- Plate thickness
Max.: 20 mm
(0.79 in)Min.: 2 mm
(0.08 in)- Working length
2,600 mm, 3,100 mm, 4,100 mm
(102.36 in, 122.05 in, 161.42 in)
Description
Throat depth155 180 210 210 260 260 180
Back guage stroke - 1000 - 1000 - 1000 - 1000 - 1000 - 1000 - 1000
Shearing angle - 1.26 - 1.42 - 1.79 - 1.97 - 2.33 - 2.85 - 1.49
Hydraulic pressure - 255 - 255 - 255 - 255 - 255 - 255 - 255
Main motor power - 7.5 - 11 - 15 - 22 - 30 - 37 - 11
Length 3450 - 3950 3950 3950 3950 3950 4950
Width - 3500 - 3900 - 4100 - 4500 - 4500 - 4500 - 3900
Height 1950 - 1950 - 2050 2200 2550 2550 2050
Weight - 5900 - 8300 - 10500 - 13000 - 17000 - 24000 - 11800
VIDEO
