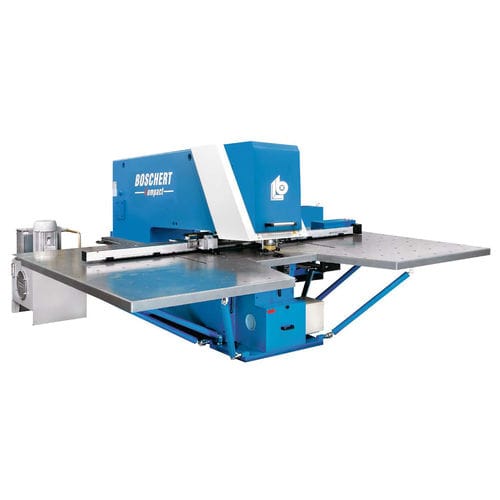

CNC punching machine CompactEVO

hydraulicsheet metaldrilling

An L-sheet is provided with all machines for working very small pieces and pre-bent parts. (Standard) The automatic tool lubrication serves to increase tool life when nibbling stainless steel (VA) and decreases edge burrs in aluminium Repositioning up to 10 meters and clamp movement without contacting the sheet. 2 robust clamps for sheets up to 200 kg (expandable to 4 clamps). Standard capacitiy up to 7 mm or 12,7 mm when required. (Standard) Sandblasted, corrosion resistant surface as standard. Balls in the table for heavier sheets and easy handling, brushes in the table for thin or scratch sensitive sheets are also available. Vacuum slug removal CNC/CAD software to import DXF-files into machine language, calculated punch time, graphic simulation Nibbling up to 800 strokes / min with integrated oil cooling Programmable repositioning of the clamps for faster set up of the machine. Tapping and drilling attachment for threads M3 up to M12 and smaller drilled holes in thicker sheets. Marking apparatus for marking parts in 10 different fonts. Performance Max. sheet length 9999 mm by repositioning Speeds Max. positioning speed X- axes 60 m/min Max. positioning speed Y- axes 30 m/min simultaneous X & Y 67 m/min Max. strokes standard hydraulic 250 strokes/min Max. strokes fast hydraulic 800 strokes/min Toolings Trumpf tooling system Max. punching diameter 105 mm or any shape within 105 mm Revotool 4 / 6 / 7 & 8 stations Time of tool changing 2-4 sec. Revotool 15 sec. manual Axes accuracy during punching process Positioning difference + - 0,10 mm Repeatability + - 0,03 mm Space requirement and weights Compact 750x2000 4050 x 4000 x 2110 mm weight 7400 kg
