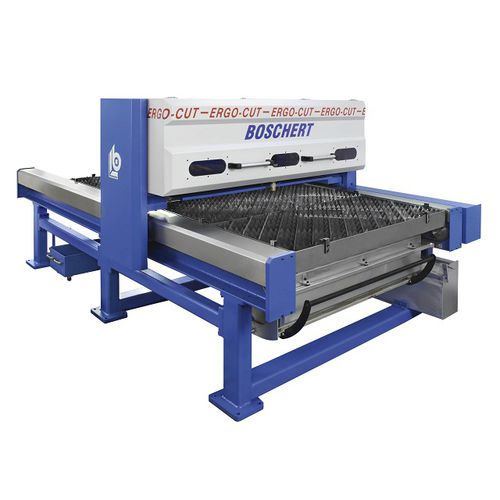

Plasma cutting machine ErgoCut series

for metalsheet metalCNC

Plasma (Kjellberg 160i) 160 A Marking 5 - 8 A Cutting range (dependent upon material) 0,5 mm to 50 mm Speeds Max. positioning speed 30 m/min Working speed from 200 – 8000 mm/min Plasma gases Plasma gas oxygen, air, argon, nitrogen, hydrogen and mixtures Marking gas argon Swirl gas oxygen, air, nitrogen and mixtures Space requirement and weights (Sizes are only for ErgoCut 3015) Lengths 4408 mm Depth 2240 mm Height 1500 mm Weight 3000 kg Electrical values Main fuse machine 3 x 25 A Supply performance machine 14 kVA Main fuse Plasma 3 x 50 A "C" (Kjellberg 160i) Supply performance 33 kVA (Kjellberg 160i) Recommended datas for suction Ventilator Suction power 5.000 m3/h Anschlussspannung 3 x 400 V, 50 Hz Motor power 5,5 KW Dust collector Volume 40 m² Working noice 1 m distance 76 dB(A) Weight 350 kg Dimensions Height/ depth/ width 2670/ 983/ 983/ mm
